Dubox Horizontal PCB ReceptaclesThe Dubox Board to Board Double Row PCB Receptacles have a pre-stressed dual beam design contact for low insertion force. The contact platings for these Dubox Board to Board PCB Horizontal Receptacles is Tin all over.Rated at 3A/1000V Operating temperature range -65 to +125°C Insulation resistance 105 MΩ Flammability rating UL94 V-0 ### 注Mates with any 2.54 mm pitch x 0.64 mm 0.025 in. square posts.### 2.54 mm FCI Dubox 插座Dubox 板到板系统的插座触点具有预受应力双臂设计，带 4 个壁，可提供低插入力和信号保护。 4 壁式触点设计，用于信号保护 触点采用双臂设计，可以减小插入力 易燃性等级 UL 94V-0

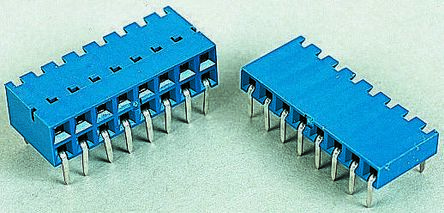

Dubox Horizontal PCB Receptacles
The Dubox Board to Board Double Row PCB Receptacles have a pre-stressed dual beam design contact for low insertion force. The contact platings for these Dubox Board to Board PCB Horizontal Receptacles is Tin all over.
Rated at 3A/1000V
Operating temperature range -65 to +125°C
Insulation resistance 105 MΩ
Flammability rating UL94 V-0
### 注
Mates with any 2.54 mm pitch x 0.64 mm 0.025 in. square posts.
得捷:
CONN RCPT 10POS .100 SGL R/A PCB
欧时:
Amphenol FCI DUBOX 系列 1行 10路 直角 2.54mm节距 通孔 印刷电路板插座 89882-410LF, 焊接端接
Allied Electronics:
FCI 2.54mm 10 Way 1 Row Right Angle PCBSocket Through Hole Socket Strip
安富利:
Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tube
Verical:
Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tube
