86479-3

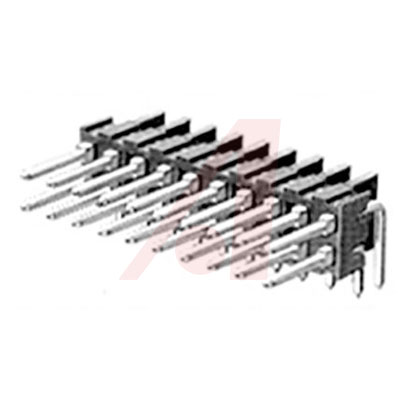

AMP FROM TE CONNECTIVITY  86479-3  针座, 10路, 2排, 直角型

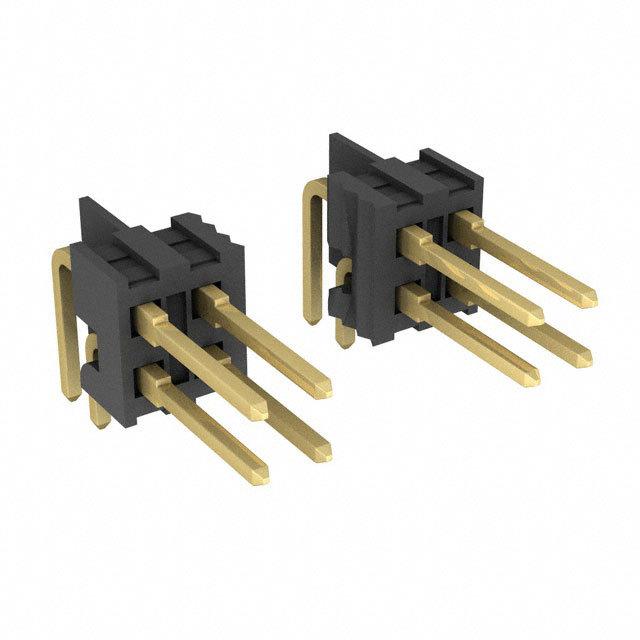

** AMPMODU II 2.54mm Unshrouded Double Row Standard Headers**

A range of TE Connectivity AMPMODU II 2.54 mm Unshrouded Double Row Standard Headers Straight Headers have an above board height of 10.36 mm [0.408 inch] and a solder tail length of 3.18 mm [0.125 inch]. Right Angle Headers have an above board height of 6.05 mm [0.238 inch] and a solder tail length of 2.79 mm [0.110 inch]. Post dimensions for these TE Connectivity AMPMODU II 2.54mm Unshrouded Double Row Standard Headers are 0.64 mm [0.025 inch] square with a contact length of 5.08 mm [0.2 inch] and are Gold plated on contact and solder areas. Manufactures Part Numbers x-87215-x have Plating A which is selective 0.00076 mm .000030 inch Gold on the contact area and Gold Flash over the remainder. Manufactures Part Numbers x-87227-x have Plating B which is selective 0.00038 mm .000015 inch Gold on the contact area and Gold Flash over the remainder.
