860B1102

VISHAY  860B1102  旋转电位器, 绕线, 860系列, 1 kohm, 线性, 10 转, 8 W, 面板

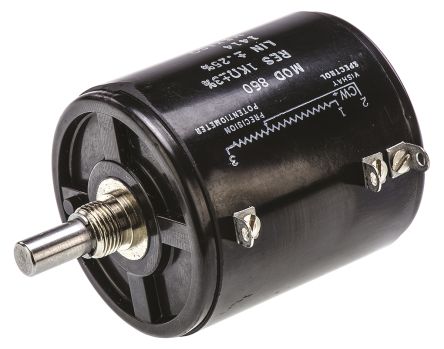

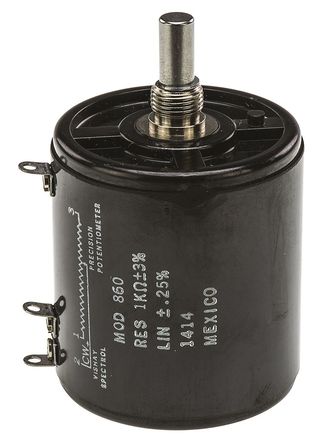

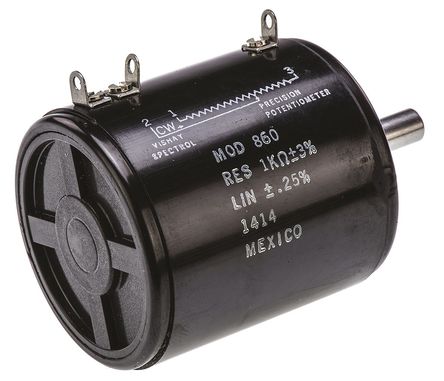

The 860 series 46mm wire-wound precision Rotary Potentiometer with moulded glass-filled thermoset plastic housing and front lid. It has nickel-plated aluminium bushing, moulded glass-filled nylon rear lid and non-magnetic/non-passivated stainless steel shaft.

.

Solderability brass terminals

.

Nickel-plated internal tooth steel lock washer

.

Nickel-plated brass panel nut

.

1000MR at 500VDC Minimum insulation resistance

.

1000Vrms at 60Hz Dielectric strength
