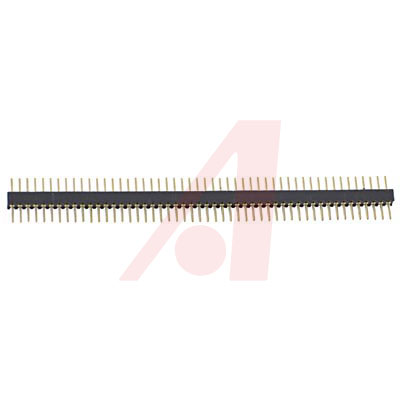

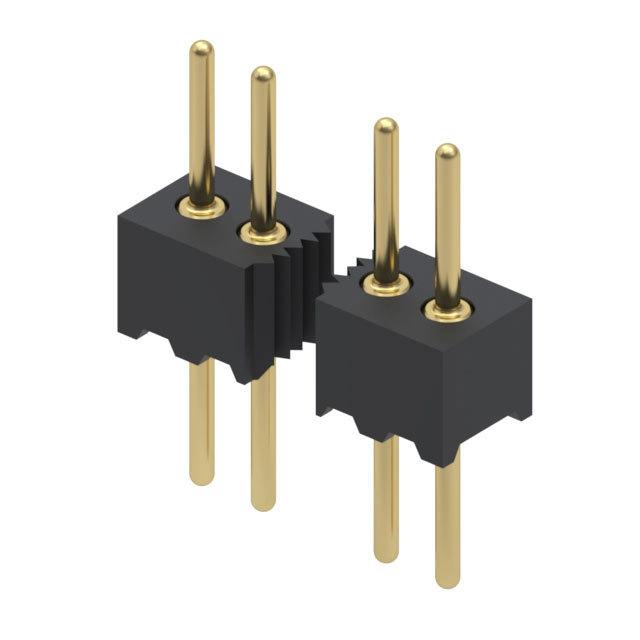

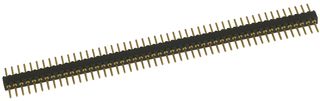

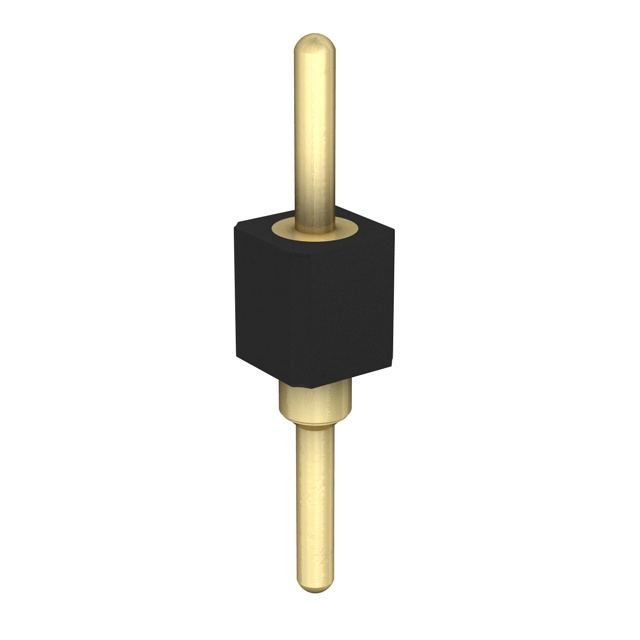

MILL MAX 850-10-050-10-001000 板至板连接器, 针座, 50路, 1排
Interconnects, 0.050 in. Grid, Single and Double Row, 3 A Current Rating
* Pin headers have 0.017 in. Dia. pins
* Beryllium copper contact material
Insulators are high temperature thermoplastic, suitable for all soldering operations.
得捷:
CONN HEADER VERT 50POS 1.27MM
e络盟:
板至板连接器, 针座, 50路, 1排
艾睿:
Use this unshrouded 850-10-050-10-001000 connector from Mill-Max Mfg. Corp. when board-to-board interconnects is required. This HDR connector&s;s 50 contacts that are made out of brass alloy and plated with gold over nickel. Its pitch is 1.27 mm. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 150 VDC|100VAC. It has a header type gender. 850-10-050-10-001000 is housed in black nylon 4/6. It uses the solder termination method. This product is 63.5 mm long, 5.11 mm tall and 2.21 mm deep.
Allied Electronics:
Pin Header; 0.050 in.; 3 A; 0.017 in.; Beryllium Copper; Thermoplastic
Chip1Stop:
Conn Unshrouded Header HDR 50 POS 1.27mm Solder ST Thru-Hole
Verical:
Conn Unshrouded Header HDR 50 POS 1.27mm Solder ST Thru-Hole
Newark:
# MILL MAX 850-10-050-10-001000 Board-To-Board Connector, 1.27 mm, 50 Contacts, Header, 850 Series, Through Hole, 1 Rows
