83007 010100概述

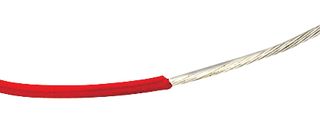

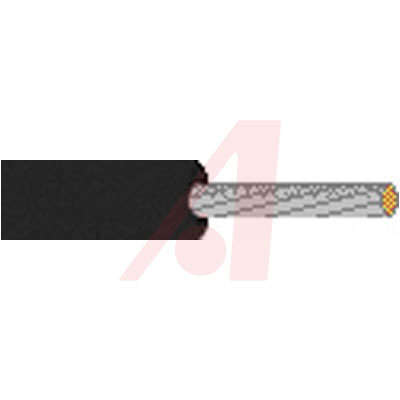

BELDEN  83007 010100  连接导线

Teflon® insulation materials are fluorinated thermoplastic with outstanding thermal, physical, and electrical properties.

Teflon® is generally restricted to applications requiring its special characteristics due to relatively high processing costs.

Teflon® is especially suitable for internal wiring soldering applications where insulation melt back is a specific problem.

Belden Teflon® wire products are outstanding in their resistance to oil, ozone, aromatic hydrocarbons, water, alcohol, gasoline,

acids, alkalis, oxidation, heat, sunlight and flame; and also in their ability to remain flexible at low temperatures.

83007 010100中文资料参数规格
技术参数

线规 20 AWG

额定电压DC 600 V

额定电流Max 6.5 A

工作温度Max 200 ℃

工作温度Min -70 ℃

额定电压Max 600 V

额定电压 600 V

外形尺寸

长度 30.48 m

物理参数

颜色 Black

工作温度 -70℃ ~ 200℃

导体材质 Copper

外壳材质 PTFE Polytetrafluoroethylene

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC版本 2016/06/20

数据手册

在线购买83007 010100
型号: 83007 010100
制造商: Belden Wire & Cable 百通线材
描述:BELDEN  83007 010100  连接导线
