WEIDMULLER 8950760000 固态继电器, 100 mA, DIN轨安装, 弹簧, 5 VDC, 48 VDC

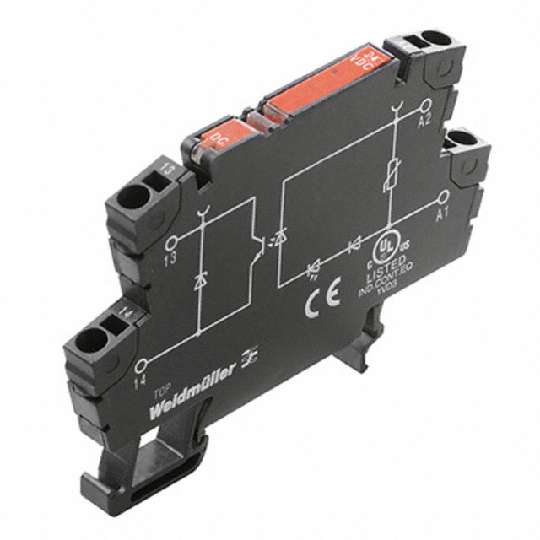

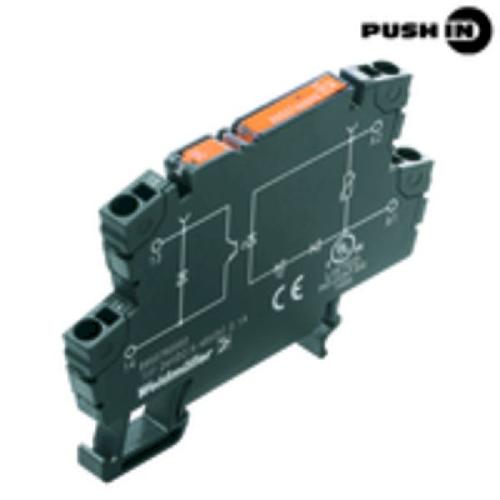

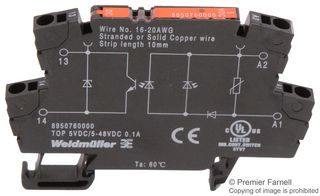

The is a Transistor Solid State Relay with push-in spring terminals. This TERMOPTO DIN-rail mount relay features varistor reverse polarity protection diode and integrated free-wheel diode. The opto module in which electrical isolation and signal conditioning without switching amplification is sufficient. The compact design in terminal-block format saves space on the rail and offers a pluggable cross-connection. The integrated protective circuit ensures sufficient protection in applications with resistive as well as slightly inductive and capacitive loads. For purely inductive, capacitive or comparable loads with high switch-on and switch-off peaks, such as solenoid valves or filament lamps, ensure that the module is dimensioned appropriate or an additional safeguard is used.
- .
- Green LED status display on control side
- .
- 2.5mm² Maximum clamping range
- .
- <40mW Power rating
- .
- * -20 to 60°C Ambient operating temperature range
