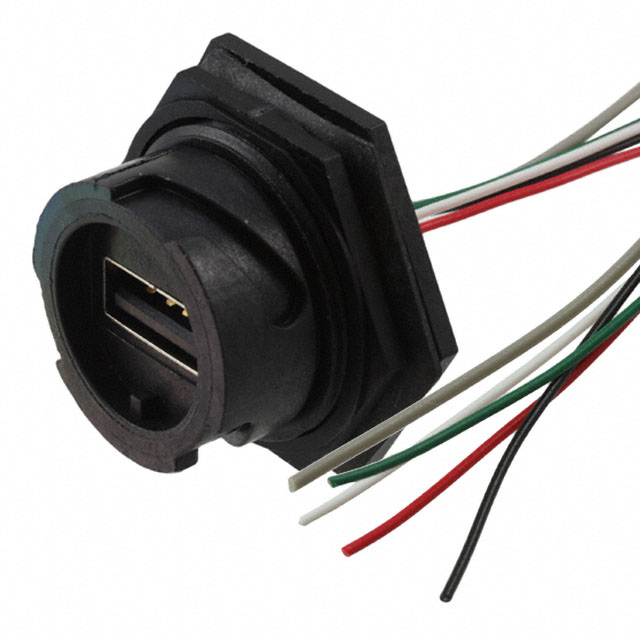

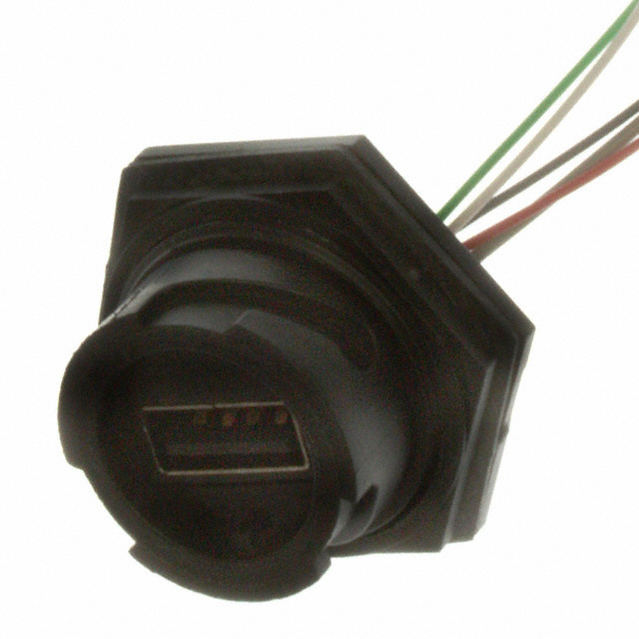

MOLEX 84729-0001 插座，USB 面板安装，152M
The is a 152mm black sealed industrial USB 2.0 Cable with a type-A receptacle on one end and pigtail/free/stripped on other end. The 84729 series fully shielded cable comes with the 28AWG 4-conductors. The PBT receptacle features gold-plated phosphor bronze contacts.
- .
- Fully shielded for EMI/RFI protection
贸泽:
USB Cables / IEEE 1394 Cables USB TYPE B PLUG TO SHLD PIGTAIL .15M
e络盟:
USB线缆, BRAD, A型插座至自由线端, 152 mm, 6 ", USB 2.0, 黑色
艾睿:
Cable Assembly 0.152m USB Type A 4 POS RCP 28AWG
Allied Electronics:
RECPT PANEL MT USBA 5C PIGTAIL 28AWG
安富利:
Cable Assembly USB 0.171m 4 POS USB RCP Bag
Newark:
# MOLEX 84729-0001 RECEPTACLE, USB, PANEL MOUNT, .152M
触点数 4
极性 Female
额定电流 1 A
无卤素状态 Not Low Halogen
电路数 4
芯数 4
额定电流Max 1A/触头
额定电压Max 30 VAC
额定电压 30 VAC
安装方式 Surface Mount
封装 0001
长度 0.152 m
脚长度 152 mm
封装 0001
电缆长度 152 mm
颜色 Black
触点材质 Phosphor Bronze
产品生命周期 Active
包装方式 Bulk
制造应用 Consumer Electronics, Industrial, Automotive, 商业, Commercial, 消费电子产品, 工业, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
