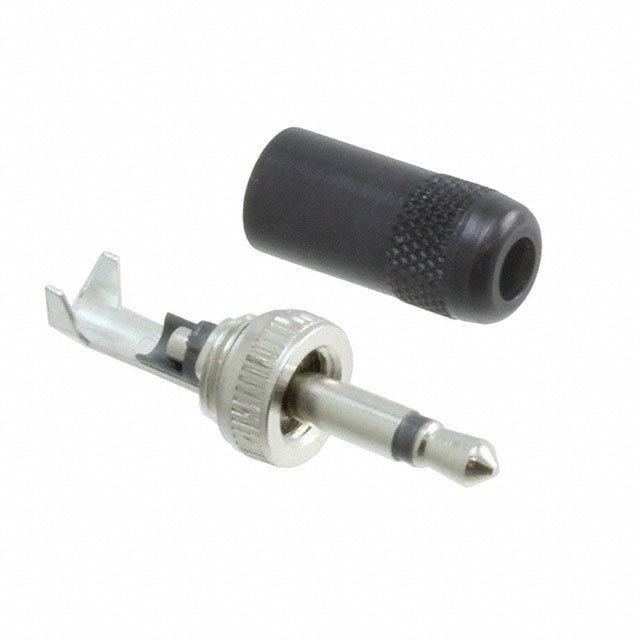

SWITCHCRAFT 851X 手机音频连接器, 锁定, 插头, 2.5 mm, 2 触点, 电缆安装, 金属主体, 镀镍触芯

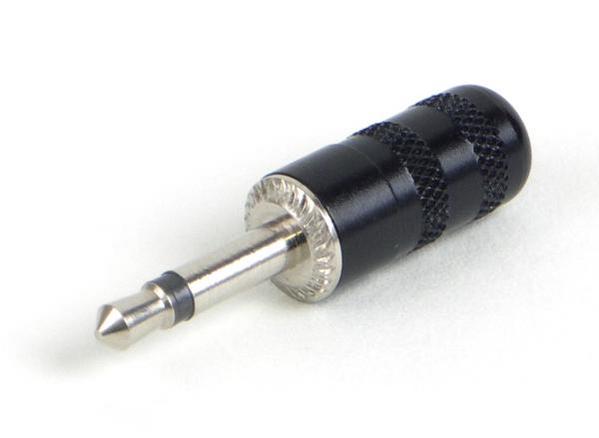

The is a 2-contact Switchcraft® Micro Plug with black handle and solder lug terminal. It has glass reinforced plastic housing, silver-plated copper alloy shunt terminal and rigid plastic insulation. It mates with Switchcraft® Micro-Jax® phone jack, which can be wired for open or closed circuit operation. Internally keyed insulators interlock all parts and jack tip springs grip mating plugs positively.
- .
- 500VAC Maximum dielectric withstanding voltage
触点数 2
极性 Male
触点电镀 Nickel
额定电流 125 mA
绝缘电阻 100 MΩ
工作温度Max 65 ℃
工作温度Min -20 ℃
额定电压 125 VAC
安装方式 Solder
封装 Metal
封装 Metal
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -20℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
制造应用 Aerospace, Defence, Military, 军用与航空, 国防, 音频, Audio
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
