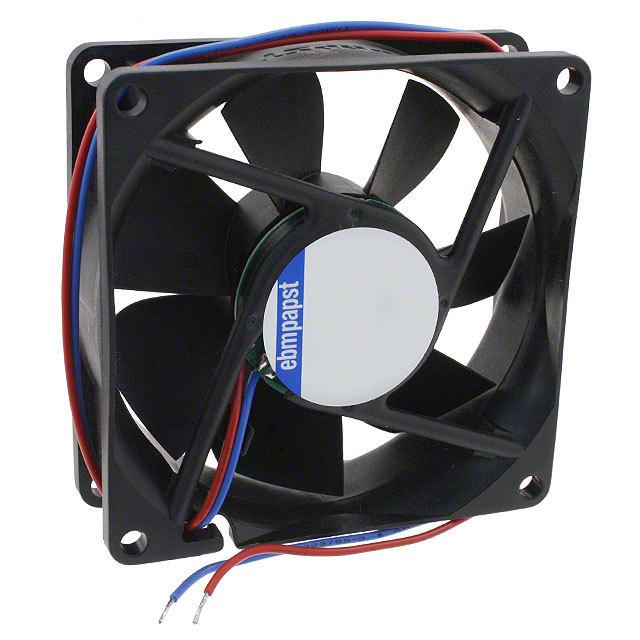

EBM PAPST 8412NGME 轴流风扇, 紧凑, 护套, 8400N系列, 12 VDC, 80 mm, 25 mm, 34.1 cu.ft/min, 58 m³/h
The is a 12VDC standard or basic medium speed Axial Fan with speed signal, Go/No-go alarm and alarm with limit speed. This fan comes with an external temperature sensor, internal temperature sensor, PWM control input and analogue control input. It features moisture protection, Sintec sleeve bearing and wire leaded power connection. Fibreglass-reinforced plastic PBT housing and fibreglass-reinforced plastic PA impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- .
- 2600RPM Speed rating
- .
- 1.4W Rated power
- .
- -20 to 75°C Maximum ambient temperature range
- .
- Protected against reverse polarity and locking
- .
- Blocking and overload protection
- .
- IP54/IP68 Protection rating
- .
- Protected against reverse polarity and locking
