8309-8009

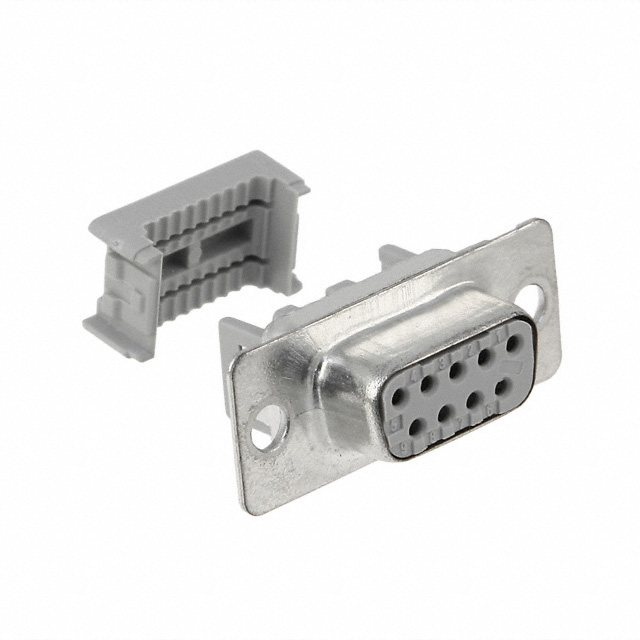

3M  8309-8009  连接器, D sub, 堆叠式, D Tin And Dimple系列, DE, 插座, 9 触点, 金属主体, IDC / IDT

9 位 D-Sub 插座，母型插口

得捷:
CONN D-SUB RCPT 9POS PNL MNT IDC

e络盟:
D-Sub 连接器, 标准, 插座, D Tin And Dimple系列, 9 触点, DE, IDC / IDT

艾睿:
The 8309-8009 DVI connector from 3M is perfect for communicating between serial connections with minimal interference. Its pitch is 2.76 mm. This 2-row connector has a single port. It has a right angle body orientation. This socket type connector&s;s 9 contacts that are made out of copper alloy and plated with gold over nickel. 8309-8009 is housed in polybutylene terephthalate. This device has a maximum current rating of 1 A. This product is 31.2 mm long, 16.6 mm tall and 12.4 mm deep. Its 9 terminals use the idt termination method. This DVI connector has an operating temperature of -55 to 105 °C.

Verical:
Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port Box

Newark:
# 3M  8309-8009  Standard D Sub Connector, Tin & Dimple, 9 Contacts, Receptacle, DE, 8300 Series, Metal Body
