8209-6000

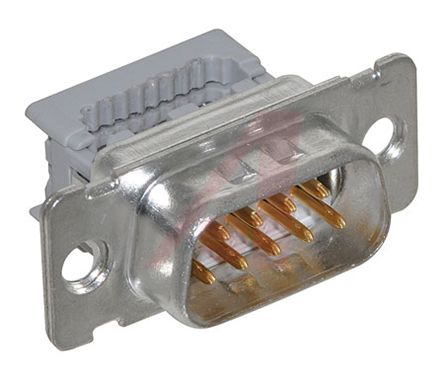

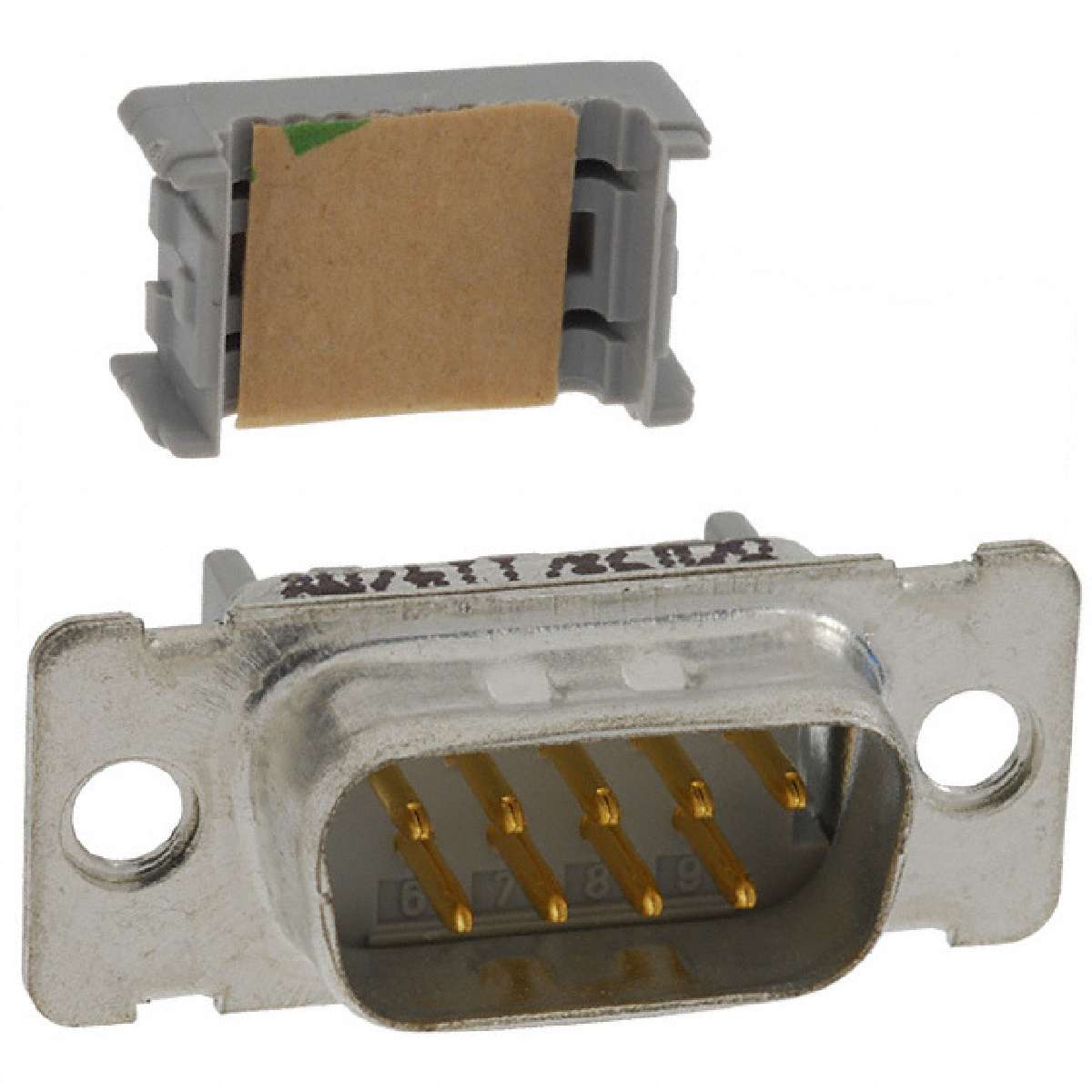

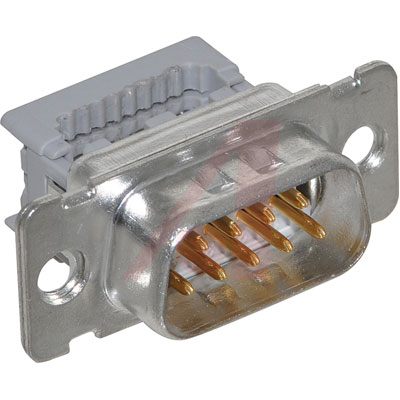

3M  8209-6000  连接器, D sub, 堆叠式, 8200系列, DE, 插头, 9 触点, 金属主体, IDC / IDT

9 位 D-Sub 插头，公引脚

得捷:
CONN D-SUB PLUG 9POS PNL MNT IDC

欧时:
D Sub connector Plug 9w

e络盟:
D-Sub 连接器, DB9, 标准, 插头, 8200系列, 9 触点, DE, IDC / IDT

艾睿:
The 8209-6000 DVI connector from 3M is ideal for communicating with any serial connections you have. Its pitch is 2.76 mm. This 2-row connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 1 A. 8209-6000 is housed in polybutylene terephthalate. This product is 31.2 mm long, 16.5 mm tall and 12.4 mm deep. Its 9 terminals use the idt termination method. This DVI connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
D-Sub Connector; Plug; Copper Alloy; Gray; Glass Filled Polyester; Steel; Tin

安富利:
Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature PIN 9 POS 1.38mm IDT RA Cable Mount 9 Terminal 1 Port Box

Verical:
Conn D-Subminiature PIN 9 POS 1.38mm IDT RA Cable Mount 9 Terminal 1 Port Box

Newark:
# 3M  8209-6000  Standard D Sub Connector, 9 Contacts, Plug, DE, 8200 Series, Metal Body, IDC / IDT

Electro Sonic:
Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port
