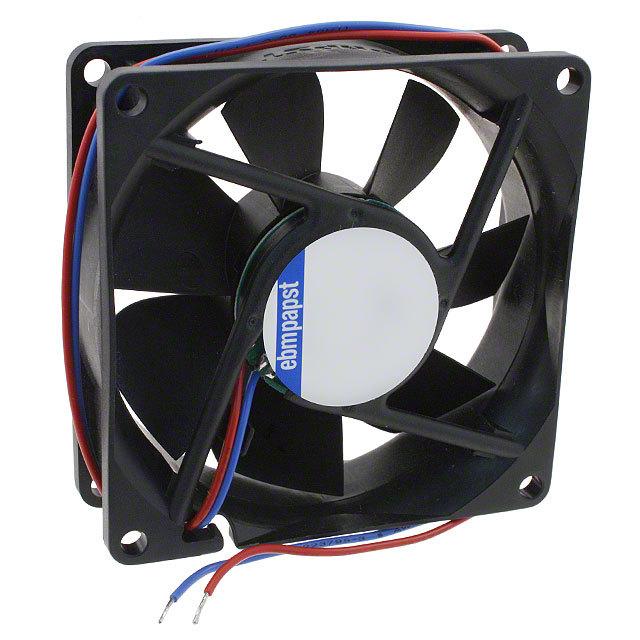

EBM PAPST 8412N 轴流风扇, 管轴式, 方形, 接线引脚, 滚珠, 8400N系列, 12 VDC, 80 mm, 25 mm, 40.6 cu.ft/min, 69 m³/h
The is a 12VDC standard or basic speed Axial Fan with speed signal, Go/No-go alarm and alarm with limit speed. This fan comes with an external temperature sensor, internal temperature sensor, PWM control input and analogue control input. It features moisture protection, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic PBT housing and fibreglass-reinforced plastic PA impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- .
- 3100RPM Speed rating
- .
- 1.7W Rated power
- .
- -20 to 70°C Maximum ambient temperature range
- .
- Protected against reverse polarity and locking
- .
- Blocking and overload protection
- .
- IP54/IP68 Protection rating
- .
- Protected against reverse polarity and locking
