82-202-RFX概述

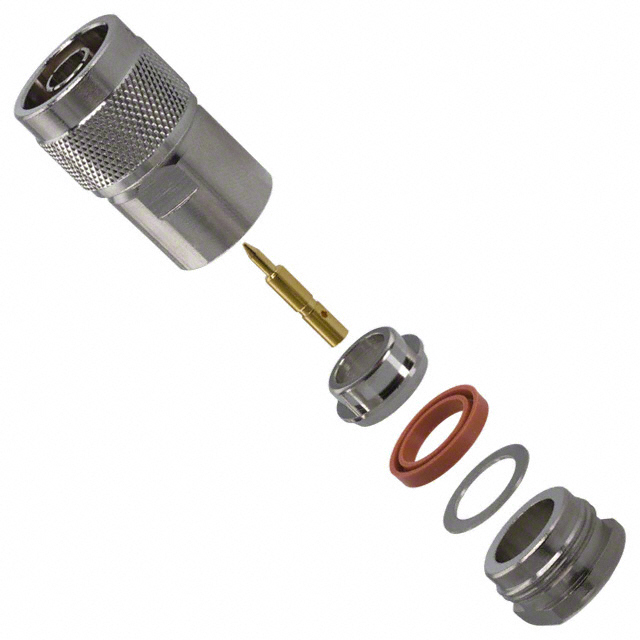

AMPHENOL RF  82-202-RFX  射频/同轴连接器, N型同轴, 直型插头, 焊接, 50 ohm, RG8, RG213, RG214, 黄铜

The is a RF Connector, N-type series, N-type straight Clamp Plug with gold-plated brass contact and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393 and RG-8 cable.

.
Threaded coupling mechanism
.
Standard polarity
.
Standard thread direction
.
5000MR Minimum insulation resistance
.
500 Mating cycles
.
-65 to 165°C Temperature range
82-202-RFX中文资料参数规格
技术参数

触点电镀 Silver, Gold

拔插次数 500

额定电压 1500 V

封装参数

安装方式 Solder

外形尺寸

长度 38.1 mm

物理参数

外壳颜色 Silver

触点材质 Brass

绝缘材质 Tetrafluoroethylene TFE

重量 53.92000 g

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Wireless, Communications & Networking, 传感与仪器, 通信与网络, 无线, Sensing & Instrumentation, RF Communications, 射频通信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694050
