8P37-N001概述

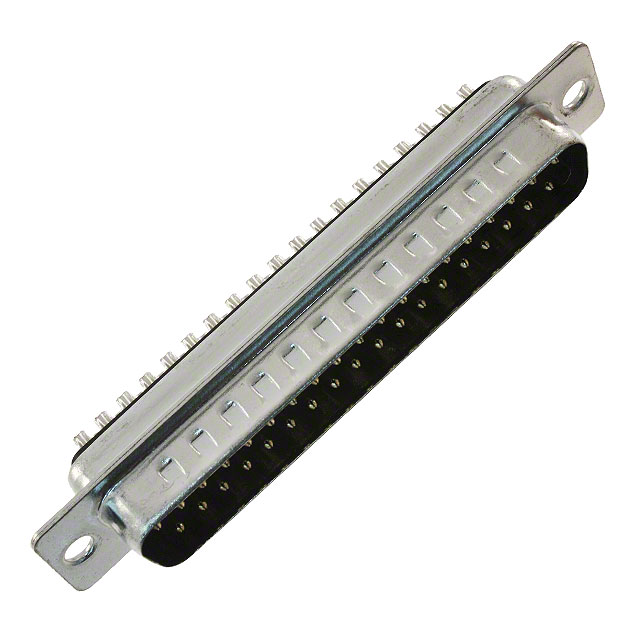

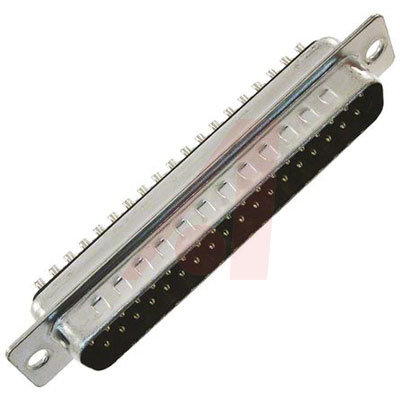

3M  8P37-N001  连接器, D-SUB, 公, 37路

37 Pin, Solder Cup, “D” Subminiature Connectors

* Flammability Rating: UL 94 V-0

* Contact Plating: Gold Flash

* 30 μ Plating Available


欧时:
Conn;D-Sub;Cable Plug;37w


得捷:
CONN D-SUB PLUG 37POS PNL MNT


e络盟:
3M  8P37-N001  连接器, D-SUB, 公, 37路


艾睿:
Conn D-Subminiature M 37 POS 2.77mm Solder Cup ST Cable Mount 37 Terminal 1 Port Box


Allied Electronics:
Conn; D-Sub; Cable Plug; 37Pos; STR; 8000 Series; Stainless Steel Shell


Newark:
# 3M  8P37-N001  Standard D Sub Connector, 37 Contacts, Plug, DC, 8000 Series, Stainless Steel Body, Solder


8P37-N001中文资料参数规格
技术参数

触点数 37

极性 Male

绝缘电阻 3000 MΩ

排数 2

针脚数 37

额定电流Max 3 A

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 250 VAC

额定电压 250 V

接触电阻Max 15 mΩ

封装参数

安装方式 Solder

外形尺寸

高度 12.5 mm

物理参数

触点材质 Copper Alloy

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Obsolete

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买8P37-N001
型号: 8P37-N001
制造商: 3M
描述:3M  8P37-N001  连接器, D-SUB, 公, 37路
