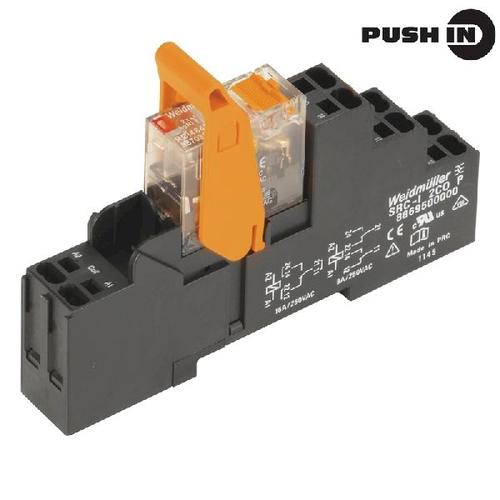

Electromechanical Relay 24VDC 1.44KΩ 16A SPDT15.8x70.2x77mm Socket General Purpose Relay
General Purpose Relay SPDT 1 Form C 24VDC Coil DIN Rail
得捷:
RELAY GEN PURPOSE SPDT 16A 24V
Verical:
Electromechanical Relay 24VDC 1.44KOhm 16A SPDT 15.8mm 70.2mm 77mm Socket General Purpose Relay
Newark:
# WEIDMULLER 8881580000 RCIKIT 24VDC 1CO LD/PB
MASTER:
Electromechanical Relay 24VDC 1.44KOhm 16A SPDT 15.8mm 70.2mm 77mm Socket General Purpose Relay
Electro Sonic:
Electromechanical Relay 24VDC 1.44KOhm 16A SPDT 15.8mm 70.2mm 77mm Socket General Purpose Relay
额定电压AC 400 V
触点类型 SPDT
易燃性等级 UL 94 V-0
触点额定电流 16 A
线圈电压 24 VDC
线圈电流 16.7 mA
线圈功率DC 400 mW
线圈电阻 1.44 kΩ
额定电流Max 16 A
线圈电压DC 24 V
线圈功率 400 mW
额定功率Max 4 KVA
安装方式 DIN Rail
引脚数 5
高度 77 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
