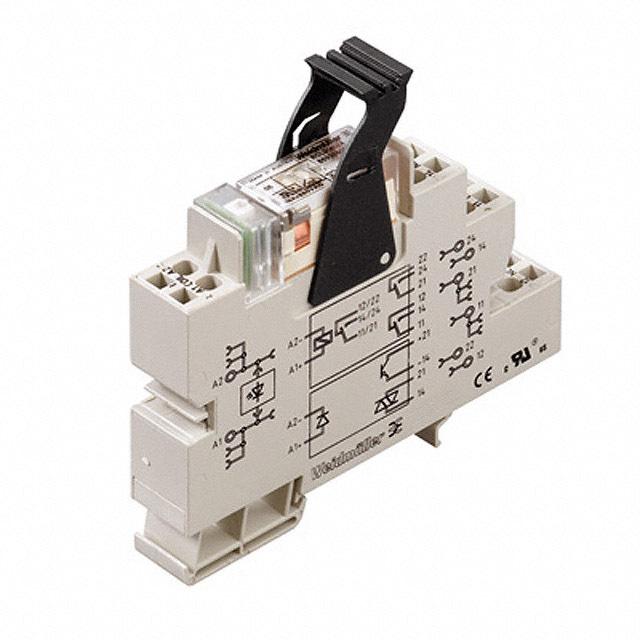

Electromechanical Relay 24VDC 1.14KΩ 8A DPDT 87.5mm 15.3mm 92mm Plug-In Coupling Relay
General Purpose Relay DPDT 2 Form C 24VDC Coil DIN Rail
得捷:
RELAY GEN PURPOSE DPDT 10A 24V
安富利:
Electromechanical Relay DPDT 16A 24VDC 1.14KOhm DIN Rail
Verical:
8530701001
Newark:
# WEIDMULLER 8530701001 Power Relay, DPDT, 24 VDC, 8 A, PLUG Series, DIN Rail
MASTER:
Electromechanical Relay 24VDC 1.14KOhm 8A DPDT 87.5mm 15.3mm 92mm Plug-In Coupling Relay
Electro Sonic:
Electromechanical Relay 24VDC 1.14KOhm 8A DPDT 87.5mm 15.3mm 92mm Plug-In Coupling Relay
额定电压AC 400 V
触点类型 DPDT
易燃性等级 UL 94 V-0
触点额定电流 8 A
线圈电压 24 VDC
线圈电流 21 mA
线圈电阻 1.14 kΩ
额定电流Max 8 A
线圈电压DC 24 V
线圈功率 400 mW
额定功率Max 2 KVA
额定电压AC Max 250 V
安装方式 DIN Rail
高度 92 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 50℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536490075
