8-338069-0

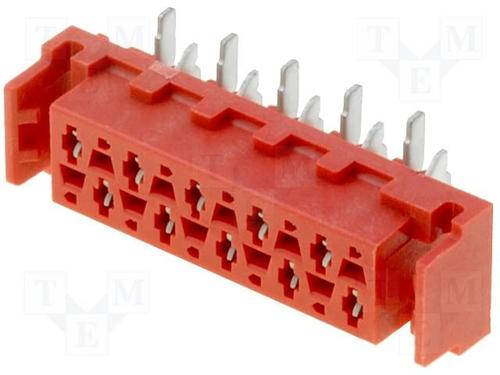

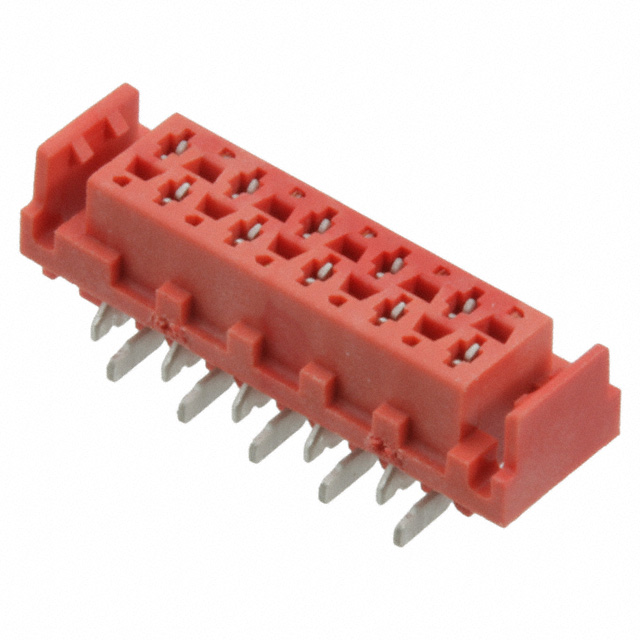

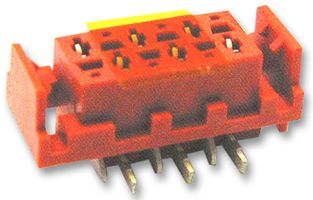

AMP FROM TE CONNECTIVITY  8-338069-0  板至板连接, Micro-MaTch系列, 10 触点, 插座, 1.27 mm, 表面安装　, 1 排

The is a 10-way 1-row Female-on-board Ribbon Cable Receptacle with tin over nickel plated copper alloy contacts and tin over nickel plated solder tail. This Micro-MaTch series connector comes with red PA housing and surface mount termination. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.

.

UL94V-0 Flammability rating

.

1.4A Current rating

.

1000MR Insulation resistance

.

100VAC Voltage rating

.

-40 to +105°C Operating temperature range
