板至板连接, 2.54 mm, 44 触点, 插座, 803 Series, 通孔安装, 2 排

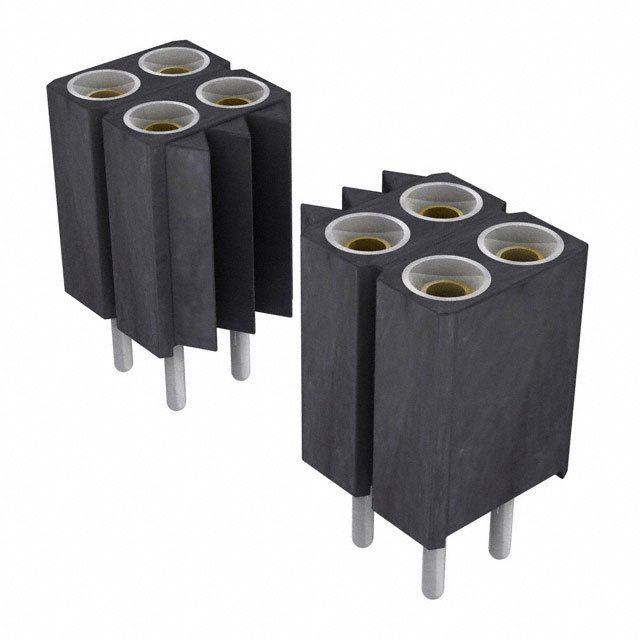

The from Preci-Dip is an 803 series, dual row PCB socket strip with 44 contacts.
-
.
-
2.54mm pitch spacing
-
.
-
Straight solder tail PCB connector
-
.
-
Black glass filled polyester PCT-GF30-FR insulator
-
.
-
Maximum rated current is 3A
-
.
-
Minimum dielectric strength is 1000VRMS
-
.
-
Maximum contact resistance is 10mohm
-
.
-
Mating pin diameter is Ø 0.76mm
-
.
-
Minimum 500 mating cycle
-
.
-
Beryllium copper with gold plated contact
