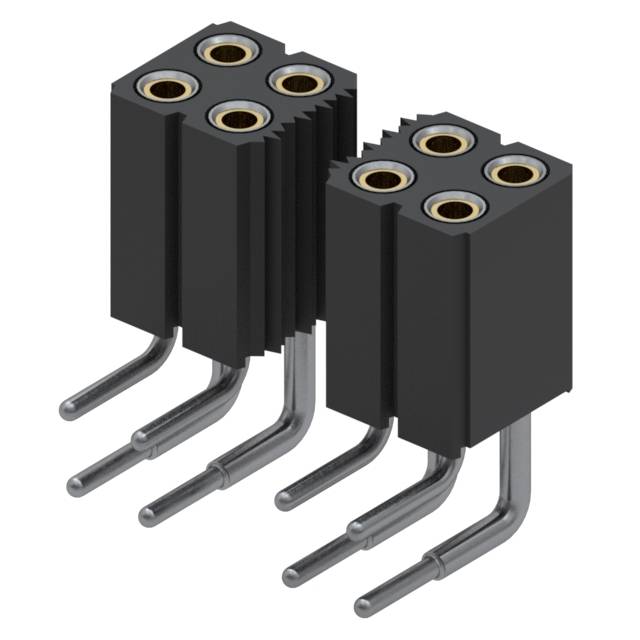

803-93-100-20-001000

Conn Socket Strip SKT 100POS 2.54mm Solder RA Thru-Hole

100 Position Receptacle Connector Through Hole, Right Angle

得捷:
CONN RCPT 100P 0.1 GOLD PCB R/A

贸泽:
Headers & Wire Housings 100 POS R/ANGLE

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip 803-93-100-20-001000 header connector from Mill-Max Mfg. Corp.. This SKT connector&s;s 100 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 4.5 A. 803-93-100-20-001000 is housed in black polychlorinated terphenyl. This product is 127 mm long, 5.08 mm tall and 10.85 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

Chip1Stop:
Conn Socket Strip SKT 100 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Socket Strip SKT 100 POS 2.54mm Solder RA Thru-Hole
