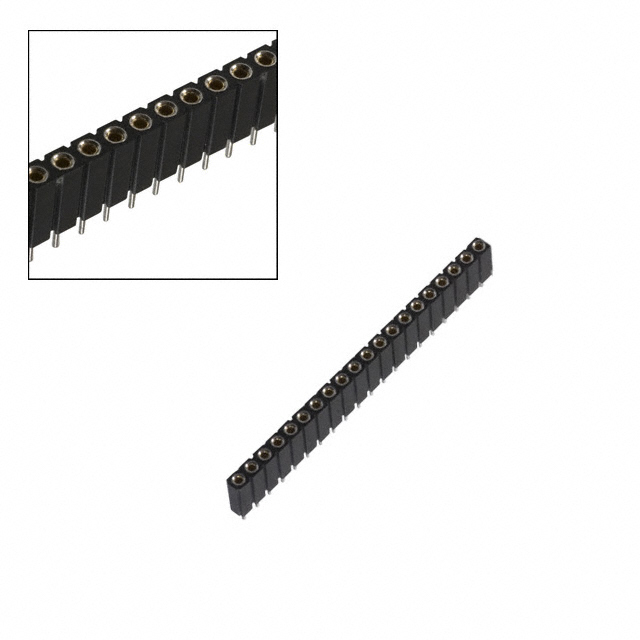

801-93-020-10-001000

Conn Board to Board SKT 20POS 2.54mm Solder ST Thru-Hole

20 Position Receptacle Connector Through Hole

得捷:
SIP SOCKET 20 POS STRAIGHT PCB

立创商城:
2.54mm

艾睿:
Mount this board to board 801-93-020-10-001000 header connector from Mill-Max Mfg. Corp. on a jumper post on your PCB to support physical configuration options. This SKT connector&s;s 20 contacts that are made out of beryllium copper alloy and plated with tin-lead over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a socket type gender. This is a 1-row connector. It has a maximum voltage rating of 150 VDC|100VAC. This device has a maximum current rating of 4.5 A. 801-93-020-10-001000 is housed in black polychlorinated terphenyl. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 50.8 mm long, 7.01 mm tall and 2.54 mm deep.

Verical:
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole
