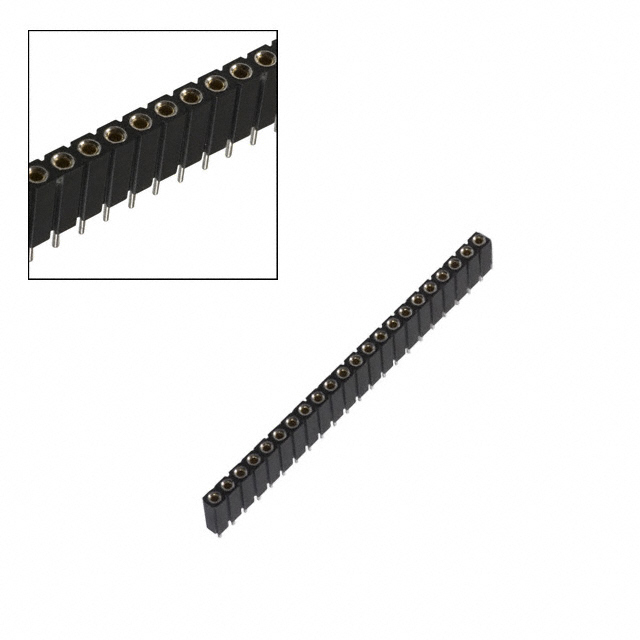

Sip Socket 22POS Straight Pcb
22 Position Receptacle Connector Through Hole
得捷:
SIP SOCKET 22 POS STRAIGHT PCB
艾睿:
Use this board to board 801-93-022-10-001000 header connector from Mill-Max Mfg. Corp. where IDC ribbon cables are used. This SKT connector&s;s 22 contacts that are made out of beryllium copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 150 VDC|100VAC. It has a straight body orientation. It has a socket type gender. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 4.5 A. This product is 55.88 mm long, 7.01 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 801-93-022-10-001000 is housed in black polychlorinated terphenyl.
