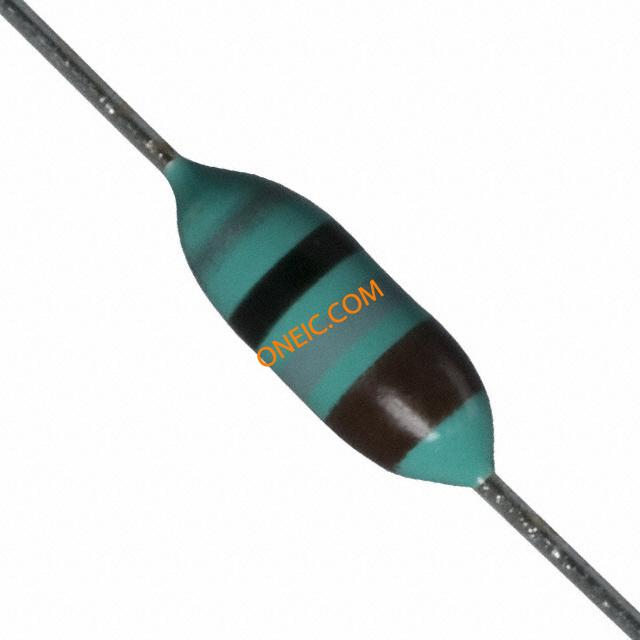

8230-50-RC

BOURNS JW MILLER  8230-50-RC  射频扼流圈, 18uH, 195mA, 10%, 32MHz

18 µH 无屏蔽 Drum Core，Wirewound 器 195 mA 3.1 欧姆最大 轴向

立创商城:
18uH ±10% 195mA 3.1Ω

得捷:
FIXED IND 18UH 195MA 3.1 OHM TH

e络盟:
射频扼流圈, 18uH, 195mA, 10%, 32MHz

艾睿:

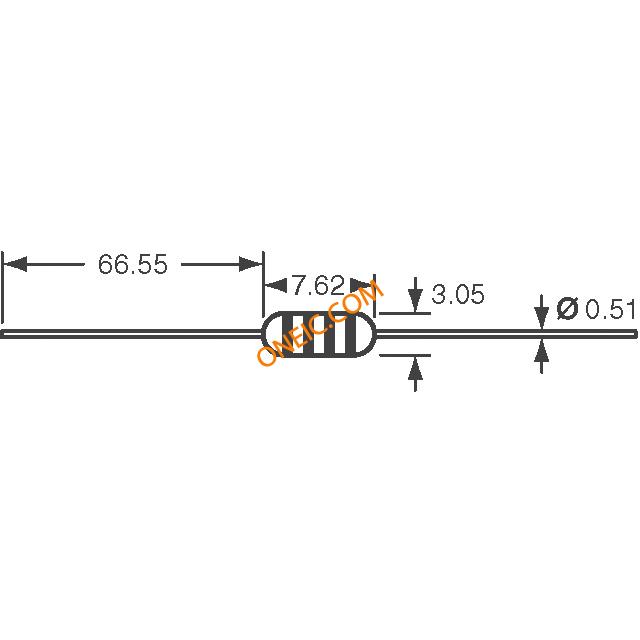

This rf choke 8230-50-RC leaded inductor from Bourns is available for both power applications and RF applications. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 10%. This product is 7.62 mm long with a diameter of 3.05 mm. It has an inductance of 18u H. This leaded inductor has a maximum DC current of 195m A with a maximum resistance of 3.1 Ohm. This device is made with wirewound technology. Its test frequency is 2.5M Hz, while its minimum self-resonant frequency is 32M Hz.

Verical:
RF Choke Wirewound 18uH 10% 2.5MHz 50Q-Factor Ferrite 0.195A 3.1Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  8230-50-RC  Axial Leaded High Frequency Inductor, RF Choke, 8230 Series, 18 µH, 195 mA, 3.1 ohm, ± 10%, 32 MHz

Online Components:
RF Choke Wirewound 18uH 10% 2.5MHz 50Q-Factor Ferrite 195mA 3.1Ohm DCR AXL Bag

Electro Sonic:
RF Choke Wirewound 18uH 10% 2.5MHz 50Q-Factor Ferrite 195mA 3.1Ohm DCR AXL Bag
