87230-4

AMP FROM TE CONNECTIVITY  87230-4  板至板连接器, 针座, 8路, 2排

针座 通孔，直角 8 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 8POS 2.54MM

立创商城:
2.54mm 方针

e络盟:
板至板连接器, 针座, 8路, 2排

艾睿:

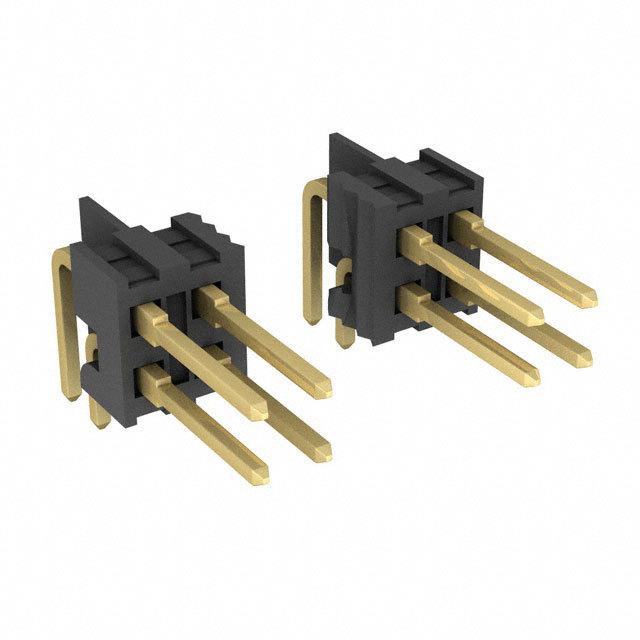

Make strong and binding connections on your circuit boards by adopting this unshrouded 87230-4 connector from TE Connectivity. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. 87230-4 is housed in black thermoplastic. It uses the solder termination method. This product is 9.75 mm long, 6.04 mm tall and 15.42 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header M 8 POS 2.54mm Solder RA Side Entry Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  87230-4  Board-To-Board Connector, 2.54 mm, 8 Contacts, Header, AMPMODU Mod II Series, Through Hole, 2 Rows

MASTER:
ASSEMBLY, MOD II, HEADER, DOUBLE ROW, .100 X .100 CL RIGHT ANGLE, .025 SQ POSTS, SELECTIVELY LOADED

Powell:
.100 inch AMPMODU Headers

Online Components:
08 MODII HDR DRRA UNSHRD .100

Electro Sonic:
08 MODII HDR DRRA UNSHRD .100
