801-93-036-10-012000

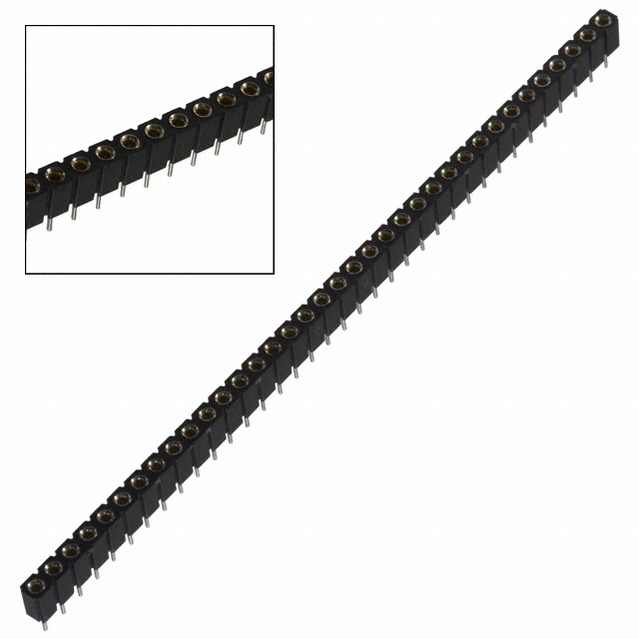

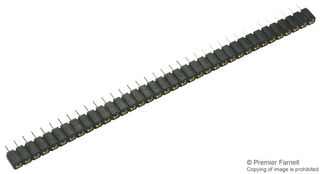

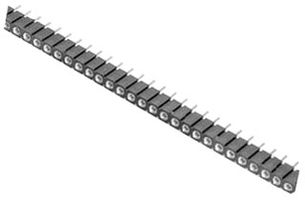

MILL MAX  801-93-036-10-012000  连接器, 插座, SIP, 36路

36 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN SOCKET STRIP LOPRO 36POS

e络盟:
板至板连接, 2.54 mm, 36 触点, 插座, 801 Series, 通孔安装, 1 排

艾睿:
Use this socket strip 801-93-036-10-012000 header connector from Mill-Max Mfg. Corp. where IDC ribbon cables are used. This SKT connector&s;s 36 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a maximum voltage rating of 150 VDC|100VAC. It has a straight body orientation. It has a socket type gender. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 4.5 A. This product is 91.44 mm long, 4.19 mm tall and 2.54 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. 801-93-036-10-012000 is housed in black polychlorinated terphenyl.

Allied Electronics:
Strip Socket; 36; Low Profile; Tin-Leadover Nickel; 0.1 in.; 0.22 in. Dia.

Chip1Stop:
Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole

Newark:
# MILL MAX  801-93-036-10-012000  Board-To-Board Connector, 2.54 mm, 36 Contacts, Receptacle, 801 Series, Through Hole, 1 Rows
