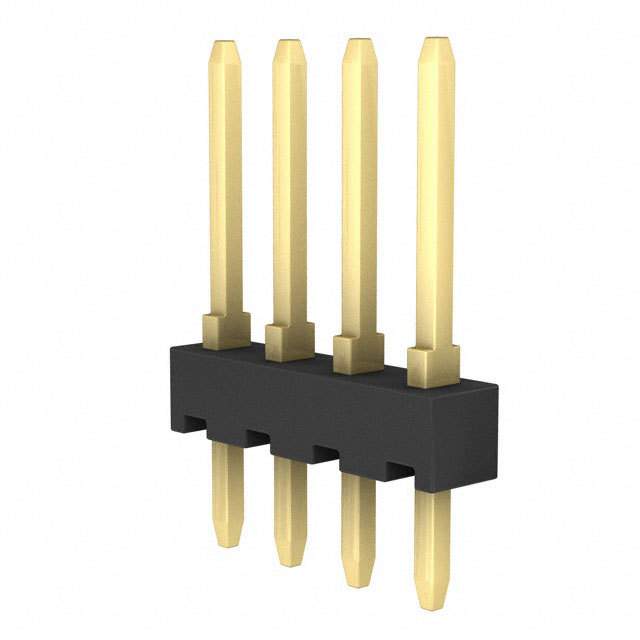

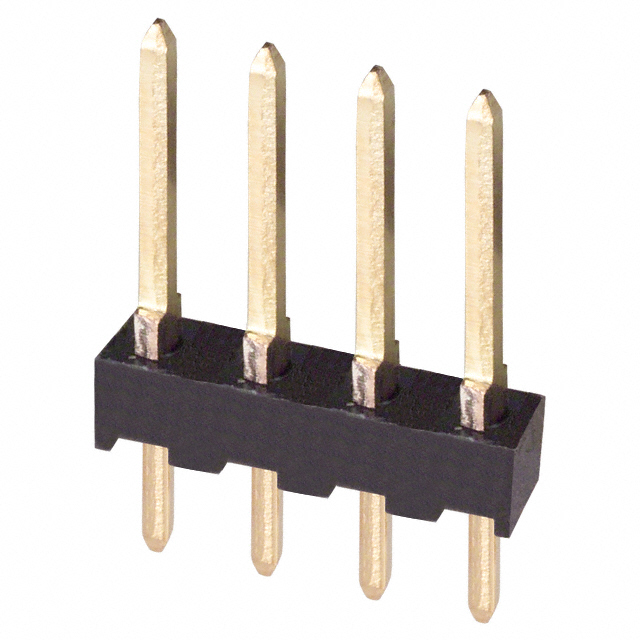

87220-4

AMPMODU 4 位置 通孔 单排 直 0.100英寸 插头

Standard Header Type, Thermoplastic Housing, 0.025 in. Post Size, Through Hole Header

** Housing** : Black thermoplastic, 94V-0 rated. ** Posts** : Copper alloy.

0.125 " termination post length

得捷:
CONN HEADER VERT 4POS 2.54MM

贸泽:
Headers & Wire Housings UNSHRD VERT SNGL 4

艾睿:
TE Connectivity brings you their unshrouded 87220-4 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. This product is 9.75 mm long, 10.37 mm tall and 2.54 mm deep. It uses the solder termination method. 87220-4 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

Allied Electronics:
MODU THRU SRHDR UNSHR; 04 MODII HDR SRST UNSHRD .100

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Top Entry Thru-Hole Carton

Newark:
# AMP - TE CONNECTIVITY  87220-4  04 MODII HDR SRST UNSHRD .100 New

MASTER:
ASSEMBLY, MOD II, HEADER, SINGLE ROW, 2.54[.100]C/L VERTICAL, 0.64[0.025] SQ POSTS

Powell:
.100 inch AMPMODU Headers

Online Components:
ASSEMBLY, MOD II, HEADER, SINGLE ROW, 2.54[.100]C/L VERTICAL, 0.64[0.025] SQ POSTS

Electro Sonic:
04 MODII HDR SRST UNSHRD .100
