Conn Board to Board F 14POS 1.27mm Solder ST SMD T/R
14 位置 插座,底部进入 连接器 表面贴装,通孔板式
得捷:
CONN RCPT 14POS 0.1 TIN SMD
艾睿:

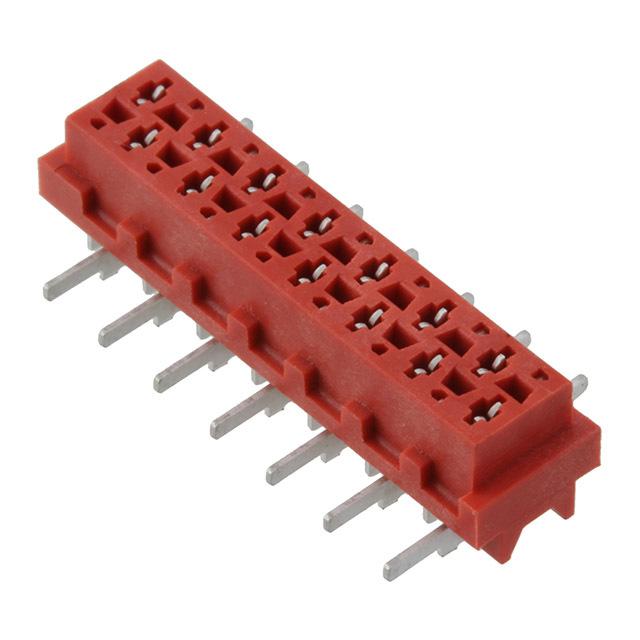

Make strong and binding connections on your circuit boards by adopting this board to board 8-188431-4 connector from TE Connectivity. This F connector&s;s 14 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a female type gender. It has a straight body orientation. Its pitch is 2.54 mm. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 19.8 mm long, 6.1 mm tall and 9.5 mm deep. 8-188431-4 is housed in red polyamide 4/6. It uses the solder termination method.
Verical:
Conn Board to Board F 14 POS 2.54mm Solder ST SMD Reel
Newark:
# AMP - TE CONNECTIVITY 8-188431-4 M-MATCH FEM. BOTTOM ENTRY SMD INB.CONN. New
MASTER:
M-MATCH FEM. BOTTOM ENTRY SMD INB.CONN.
Online Components:
M-MATCH FEM. BOTTOM ENTRY SMD INB.CONN.
Electro Sonic:
M-MATCH FEM. BOTTOM ENTRY SMD INB.CONN.
触点数 14
触点电镀 Tin over Nickel
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 14
额定电流Max 1.5A/触头
额定电压 100 VDC
安装方式 Surface Mount
高度 6.1 mm
外壳颜色 Red
颜色 Red
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车,通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536698000
