AMP FROM TE CONNECTIVITY 826646-6 板至板连接, 垂直, AMPMODU Mod II系列, 6 触点, 插头, 2.54 mm, 1 排

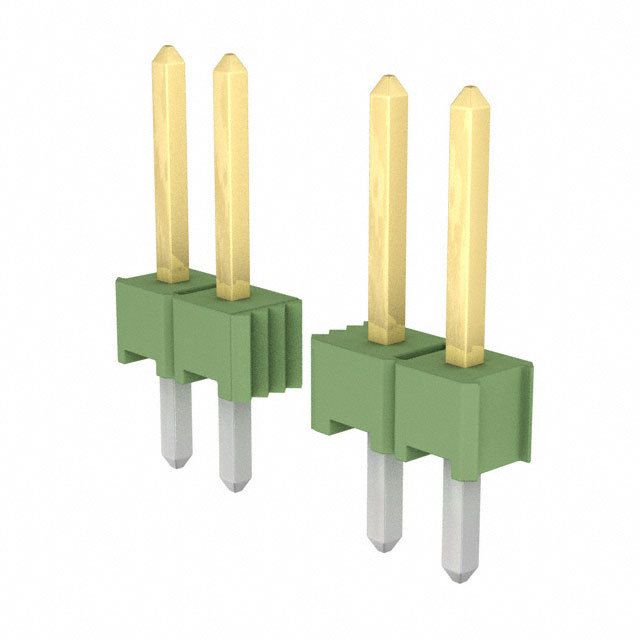

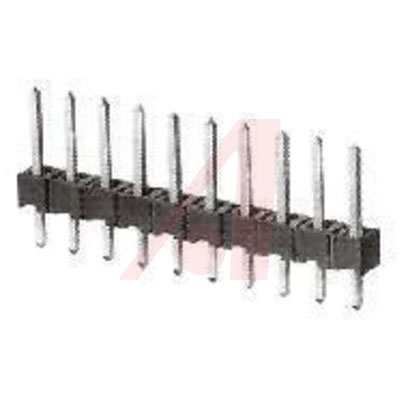

** AMPMODU Mod II 2.54mm Single Row Unshrouded Breakaway Headers**
AMPMODU Mod II unshrouded single row PCB mounting breakaway headers with a 2.54mm centerline, solder tails and black or greem thermoplastic 94V-0 rated housings. These AMPMODU Mod II unshrouded breakaway headers are available with a vertical or right angle mounting orientation and versions for surface mounting.
触点数 6
极性 Male
触点电镀 Gold, Tin
额定电流 5 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 3A/触头
安装方式 Through Hole
高度 8.6 mm
外壳颜色 Green
颜色 Green
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
