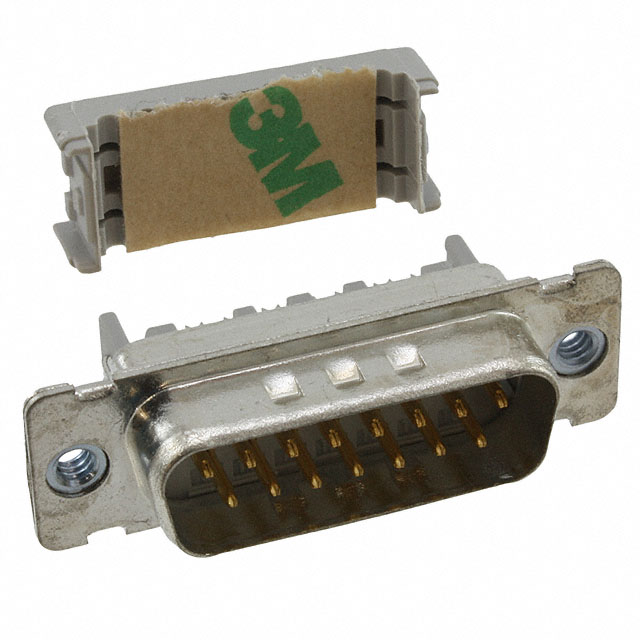

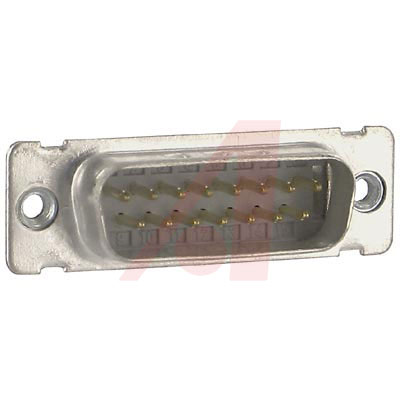

3M 8215-6003 连接器, D-SUB
15 位 D-Sub 插头,公引脚
得捷:
CONN D-SUB PLUG 15P PNL MNT IDC
贸泽:
D-Sub Standard Connectors 15P OPEN COVER PLUG LOW PROFILE
e络盟:
连接器, D-SUB
艾睿:
Conn D-Subminiature PIN 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port Box
Allied Electronics:
Conn; D-Sub; CablePlug; 15Cnt; 8200 Series; Gray; Copper Alloy; 26; 28AWG
安富利:
Conn D-Subminiature PIN 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature PIN 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port Box
Verical:
Conn D-Subminiature M 15 POS 1.27mm IDT RA Cable Mount 15 Terminal 1 Port Box
Newark:
# 3M 8215-6003 Standard D Sub Connector, 15 Contacts, Plug, DA, 8200 Series, Metal Body, IDC / IDT
触点数 15
极性 Male
触点电镀 Gold
额定电流 1 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 15
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
封装 Metal
引脚间距 2.77 mm

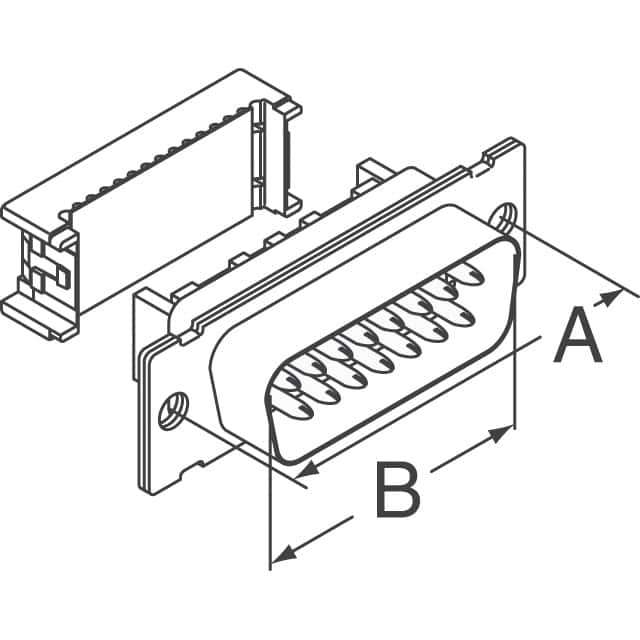

长度 39.6 mm
宽度 12.4 mm
高度 16.5 mm
封装 Metal
引脚间距 2.77 mm
外壳颜色 Gray
颜色 Gray
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
