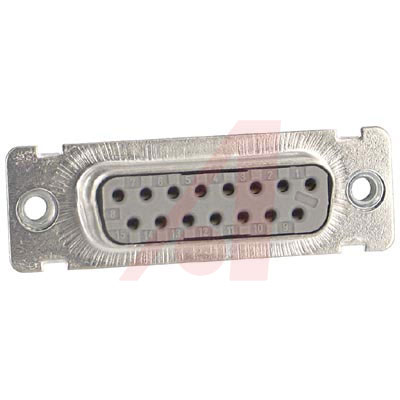

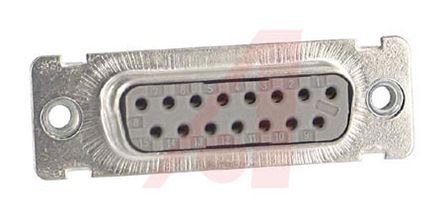

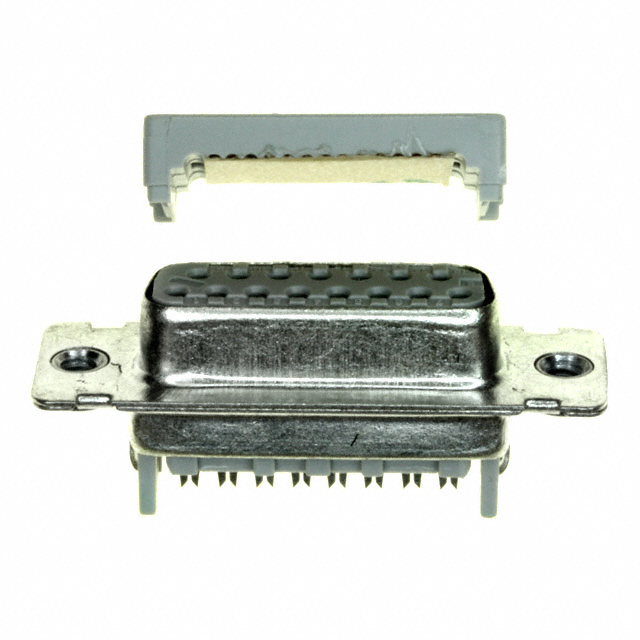

3M 8315-6003 连接器, D-SUB
15 位 D-Sub 插座,母型插口
得捷:
CONN D-SUB RCPT 15P PNL MNT IDC
欧时:
Connector D-SubCableSocket 15w
贸泽:
D-Sub标准连接器 15P OPEN COVR SOCKET LOW PROFILE
e络盟:
D-Sub 连接器, DB15, 标准, 插座, 8300 Series, 15 触点, DA, IDC / IDT
艾睿:
Conn D-Subminiature SKT 15 POS 1.38mm IDT RA Cable Mount 15 Terminal 1 Port Box
Allied Electronics:
Conn; D-Sub; CableSocket; 15Cnt; 8300 Series; Gray; Copper Alloy; 26; 28AWG
安富利:
Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature SKT 15 POS 1.38mm IDT RA Cable Mount 15 Terminal 1 Port Box
Newark:
# 3M 8315-6003 Standard D Sub Connector, 15 Contacts, Receptacle, DA, 8300 Series, Metal Body, IDC / IDT
触点数 15
极性 Female
触点电镀 Gold
额定电流 1 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 15
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
引脚间距 2.77 mm

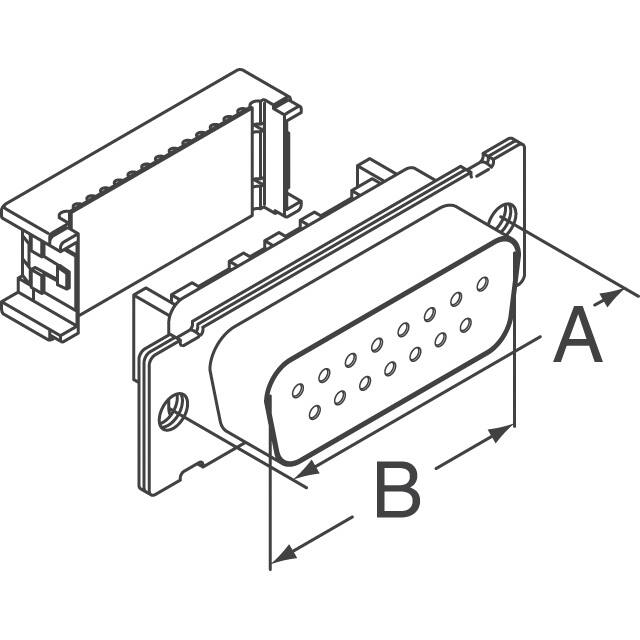

长度 39.4 mm
宽度 12.4 mm
高度 16.6 mm
引脚间距 2.77 mm
外壳颜色 Gray
颜色 Gray
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 计算机和计算机周边, 通信与网络, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
