88826145参数规格_中文资料_数据手册PDF

88826145概述

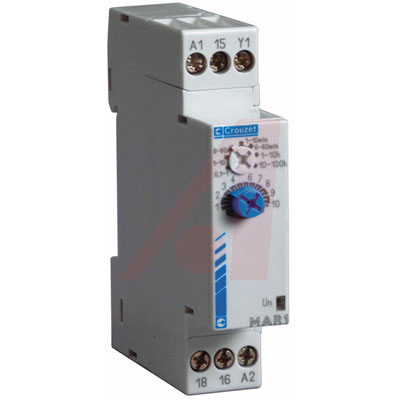

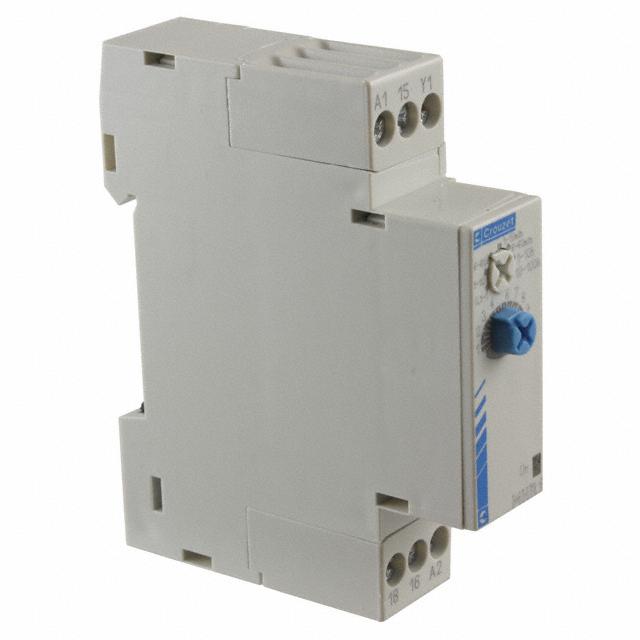

Electromechanical Relay 24VDC 24V to 240VAC 10A SPDT 81x17.5x69mm DIN Rail Time Delay Relay

得捷:
RELAY TIME DELAY 100HRS 8A 250V

Allied Electronics:
RELAY TIME ANALG 8A 24-240V DIN

Verical:
CHRONOS 2 ELECTRONIC TIMERS -17.5MM

MASTER:
Electromechanical Relay 24VDC 24V to 240VAC 10A SPDT 81x17.5x69mm DIN Rail Time Delay Relay

Online Components:
Electromechanical Relay 24VDC 24V to 240VAC 10A SPDT 81x17.5x69mm DIN Rail Time Delay Relay

Electro Sonic:
Electromechanical Relay 24VDC 24V to 240VAC 10A SPDT 81x17.5x69mm DIN Rail Time Delay Relay

88826145中文资料参数规格

技术参数

电源电压DC 250V max

额定电流 10 A

额定电流Max 10 A

线圈电压DC 24 V

精度 ±0.5 %

额定电压AC Max 250 V

电源电压 24VAC ~ 240VAC

封装参数

安装方式 DIN Rail

引脚数 6

封装 100

外形尺寸

封装 100

物理参数

工作温度 -20℃ ~ 60℃

其他

产品生命周期 Obsolete

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536490055

数据手册

在线购买88826145

型号： 88826145

描述：Electromechanical Relay 24VDC 24V to 240VAC 10A SPDT 81x17.5x69mm DIN Rail Time Delay Relay
