8830N

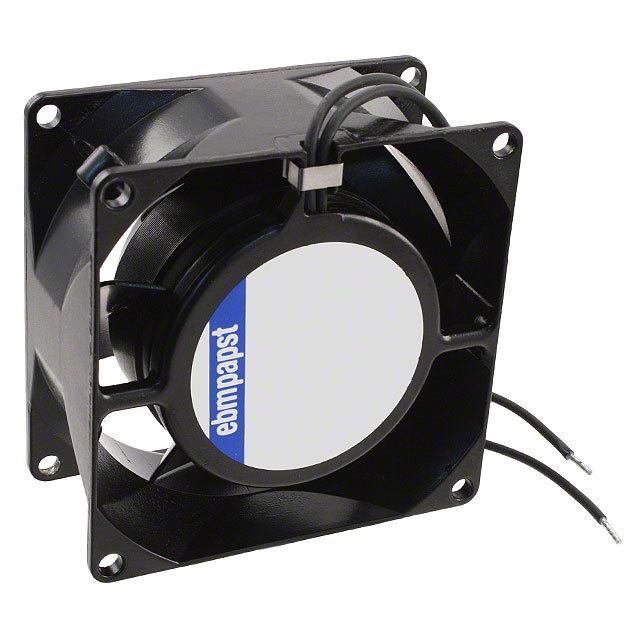

EBM PAPST  8830N  轴流风扇, 管轴式, 方形, 管套, 8000N系列, 115 VAC, 80 mm, 38 mm, 21.2 cu.ft/min, 0.59 m³/min

The is a 115VAC Axial Fan with Sintec sleeve bearing and terminal power connection. Die-cast aluminium housing and sheet steel coated in black impeller. Right direction of rotation looking at rotor, exhaust over struts direction of air flow with 2 single strands 18AWG leads, TR 64 grounding lug M4 x 8. The AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

1950RPM Speed rating

.

8W Rated power

.

-10 to 80°C Maximum ambient temperature range

.

Insulation class-E

.

Protected from overload using impedance protection
