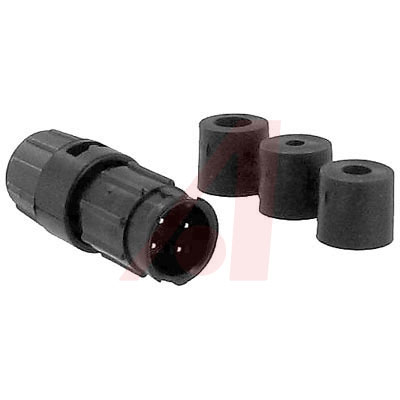

CONXALL 8282-4PG-3DC Circular Connector, Mini-Con-X Series, Cable Mount Plug, 4Contacts, Solder Pin
MICRO-CON-X® Field Installable Connectors
Contact arrangements shown are wiring view of cable end pins/sockets. Key/Keyway shown for orientation only.- .
- Available in Connector Types: Cable-End Socket, Panel-Mount Pin and Cable-to-Cable Pin-Styles Only.
* Provide Quality Solutions Requiring Interconnection in Harsh Environments
* 2-31 Contacts Available
* Applications Include, But Not Limited to, Marine, GPS Systems, Transportation, Etc.
* Ratings: 3.0 to 7.5 A, 600 V
* Contact Plating: Gold Over Nickel
* Mechanical Specifications: Minimum of 300 Mate/Unmate Cycles, Overriding Locking Feature on Coupling Ring to Prevent Vibration or Loosening, and an All Series Hex Nut to Withstand 1-12 inch/lb. Tightening Torque
* Environmental Specifications: Temperature: -55°C to +125°C -67°F to +257°F, Corrosion: 300 Hour Salt Spray Contacts

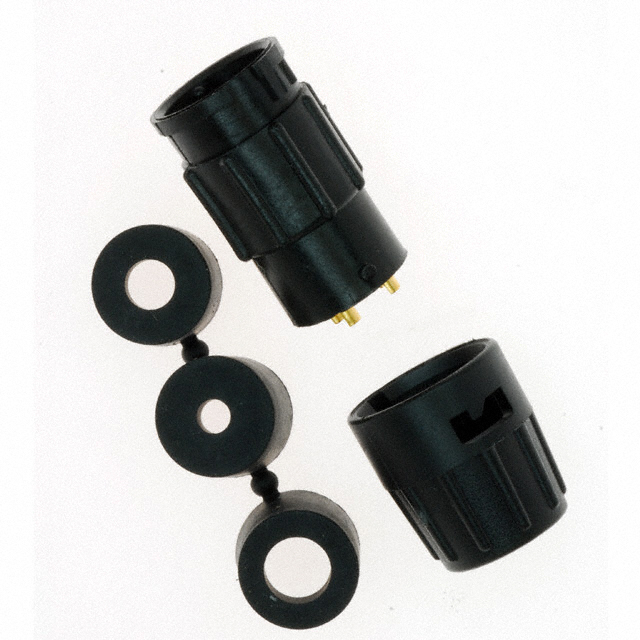

* Daisy Chain Grommet with 3 I.D.s: 0.125", 0.188" and 0.250"
