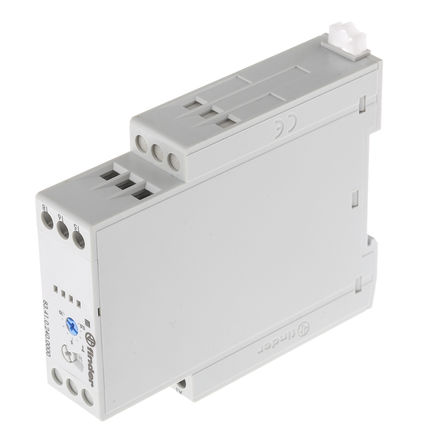

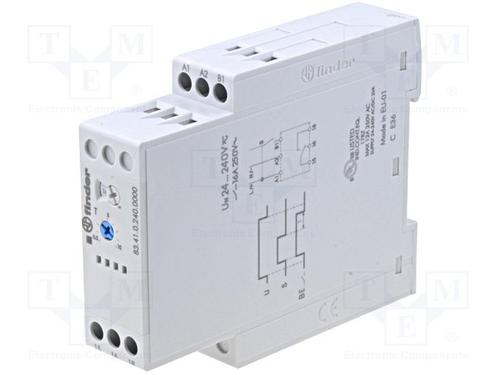

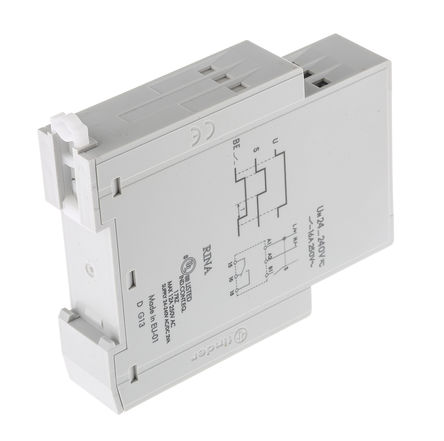

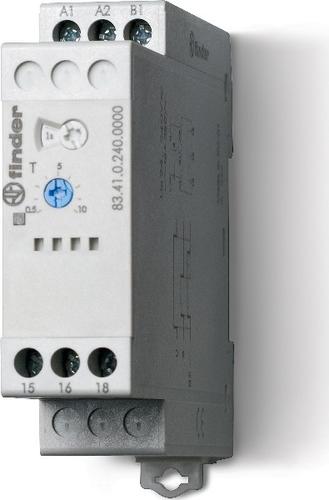

83.41.0.240.0000

83 Series - Off Delay TimerSingle Pole 22.5 mm wide Eight time scales from 0.05s → 10 days High input/output isolation Wide supply range 24 → 240 Vac/dc 35 mm DIN rail EN 60715 mount “Blade + cross” - both flat blade and cross head screw drivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the rail mounting clip Multi-voltage versions with “PWM clever” technology ### 断开延时

83 系列 -“断开”延时计时器

单极

22.5 mm 宽

8 个时间刻度，0.05s → 10 天

高输入/输出隔离

广泛的电源范围 24 → 240 V 交流/直流

35 mm DIN 导轨 EN 60715 安装

“刀片 + 十字”- 扁平刀片和十字头螺丝刀可用于调节范围和功能选择器、计时微调电容器，以脱离导轨安装夹

多电压版本，采用“PWM clever”技术

欧时:
Timer SPDT Off-delay 0.05s - 10d

得捷:
RELAY TIME DELAY 240HR 16A 250V

TME:
Timer; 0,05s÷10days; SPDT; 250VAC/16A; 24÷240VAC; 24÷240VDC; DIN

Newark:
# FINDER  83.41.0.240.0000  Analog Timer, 83 Series, Off-Delay, 0.05 s, 240 h, 8 Ranges, 1 Changeover Relay
