8788580000

WEIDMULLER  8788580000  连接器, PROFIBUS, DP, RS, PB-DP, T SUB-D

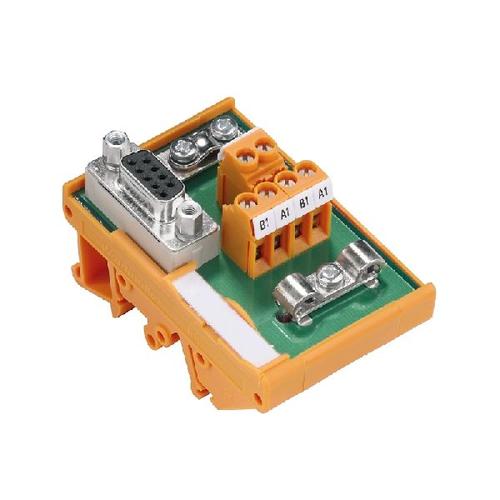

The is an IP20 T-piece PROFIBUS-DP Interface Unit enables the user to connect it conveniently in the electrical cabinet. The RS PB-DP T SUB-D interface unit can be mounted on TS32/35 rails and used to connect standardized PROFIBUS-DP lines. Spur lines can be connected next to the connections. The spur lines should be kept as short as possible. It allows you to also connect an analysis/programming device via a 9- pole Sub-D socket.

.

IP20 Protection rating

.

8mm Cable diameter

.

Good shield contact
