8103.01153

BELDEN 8103.01153 Multipair Screened Cable, Computer, Per M, Chrome, 3 Pair, 24AWG, 0.2mm², 498.69Ft, 152m

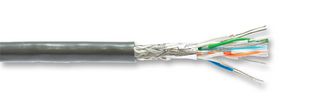

The is a 3-pair 6-conductor low capacitance shielded Computer Cable with tinned copper conductors with foam high density polyethylene insulation. It has an outer shield of 100% aluminium foil-polyester tape with shorting fold coverage and 65% TC braid coverage.

.

38.5lb Maximum recommended pulling tension

.

100R Impedance

.

1.5A at 25°C Current per conductor

.

-30 to 80°C Operating temperature range
