876-N5

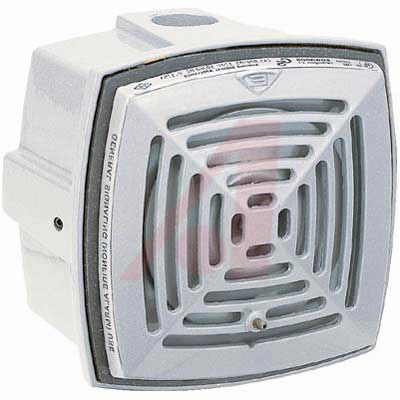

876-N5图片1
876-N5图片2
876-N5图片3
876-N5概述

Horn, vibrating; 120VAC; 78-103dB; 400 hr rating; NEMA 4X enclosure

Corrosion Resistant Finish, 3-5/16 in. W x 4-7/8 in. H Dimension, Horns

UL Listed. All units feature heavy-duty die cast construction with a gray corrosion-resistant epoxy finish. Gray flame resistant housings constructed of engineered thermoplastic. Terminals for easy wiring. Other voltages available.

The edwards 876 AC & 877 DC series are low-current, high decibel, vibrating horns for heavy-duty use and is UL Listed to NEMA 4X enclosure requirements.


Allied Electronics:
Horn, vibrating; 120 VAC; 78-103 dB; 400 hr rating; NEMA 4X enclosure


Newark:
# EDWARDS SIGNALING PRODUCTS  876-N5  Horn, Weatherproof


876-N5中文资料参数规格
技术参数

电源电压DC 120 V

额定电流 0.13 A

额定功率 15.6 VA

输入电流 130 mA

电源电压AC 120 V

电源电压 120 VAC

封装参数

安装方式 Surface Mount

外形尺寸

宽度 84.1 mm

高度 124 mm

物理参数

颜色 Gray

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买876-N5
型号: 876-N5
制造商: Edwards Signaling
描述:Horn, vibrating; 120VAC; 78-103dB; 400 hr rating; NEMA 4X enclosure
