8777 060U500

多芯电缆 22AWG 3PR SHIELDED 500ft BOX CHROME

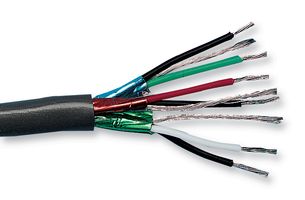

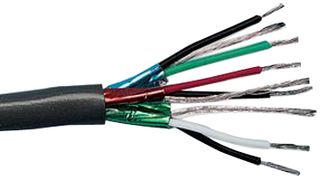

The is a 152.4m 3-pair 22AWG Shielded Cable with stranded tinned copper conductors and polypropylene insulation. This twisted pair multi-conductor cable comes with a Beldfoil® aluminium foil-polyester tape shield 100% coverage, 22AWG stranded tinned copper drain wire and chrome PVC jacket. This multi-conductor cable delivers low voltage analogue data and signal transmission within enclosures from controllers and I/O"s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.

.

79lbs Maximum recommended pulling tension

.

0.18µH/ft Nominal inductance

.

30pF/ft Nominal capacitance conductor to conductor

.

15R/ft at 20°C Nominal conductor DC resistance DCR

.

-20 to 80°C Operating temperature range
