82860003

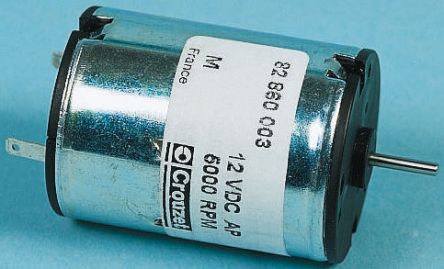

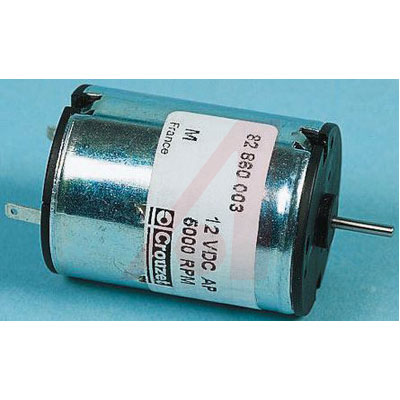

CROUZET AUTOMATION  82860003  直流电机, 直接驱动, 3 W, 5000 rpm, 7.7 mN-m

是一款3W 12V DC直接驱动电机, 最大转速为5000RPM, 最大扭矩为7.7Nm, 并且无齿轮头。永久润滑烧结青铜轴承, 2.8 mm端子连接, 高性能塑料齿轮, 以及抑制干扰功能。

.

48%效率

.

IP40 防护等级

.

变速箱温度升高50°C

得捷:
STANDARD MOTOR 3700 RPM 12V

欧时:
3 W MotorsDC motors, Ø 32 mm, available in 12 or 24 Vdc versions. Motors for use in printers, photocopiers, diaphragm pumps and beacons. Solder lug connections. Stock no. | 409-5282 | 409-5298 ---|---|--- Voltage Vdc | 12 | 24 Nominal speed rpm | 3700 | 3700 No-load speed rpm | 5000 | 5000 Rated current mA | 0.43 | 0.26 No-load current mA | 0.1 | 0.08 Nominal torque mNm | 7.7 | 7.7 Operating temperature: | -20 °C → +60 °C ---|--- Weight: | 100 g ### 永久磁铁电动机适合运动、移动或定位应用，用户可选择要安装的驱动或变速箱装置。

贸泽:
AC, DC & Servo Motors 12VDC 5000 RPM AP

e络盟:
直流电机, 直接驱动, 3 W, 5000 rpm, 7.7 mN-m

Allied Electronics:
Crouzet DC Motor, 3 W, 4.5 to 30 V dc, 7.7 mNm, 3700 rpm, 2mm Shaft Diameter

Newark:
# CROUZET AUTOMATION  82860003  DC Motor, Direct Drive, 3 W, 5000 rpm, 7.7 mN-m

MASTER:
Brushed DC Motors Gear Motor Cylindrical Body 12V 0.43A 3.9W 3700r/min 7.7mN.m 1.3ms 1Shaft 19g.cm² 48%

Online Components:
Brushed DC Motors Gear Motor Cylindrical Body 12V 0.43A 3.9W 3700r/min 7.7mN.m 1.3ms 1Shaft 19g.cm² 48%

Electro Sonic:
Brushed DC Motors Gear Motor Cylindrical Body 12V 0.43A 3.9W 3700r/min 7.7mN.m 1.3ms 1Shaft 19g.cm² 48%
