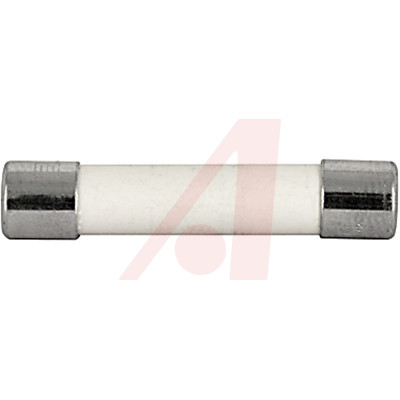

SCHURTER 8020.0605 管式保险丝, SUT系列, 20 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 500 A
The SUT series miniature Cartridge Fuse made of ceramic body with nickel-plated copper alloy end caps. It is suitable for industrial electronic and 1-phase high current applications up to 30A.
- .
- -40 to 85°C Ambient temperature range
- .
- UL 248-14
- .
- Sand filler
e络盟:
管式保险丝, 缓慢熔断, 20 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", SUT系列
艾睿:
Fuse Miniature Slow Blow Acting 20A 250V Holder Cartridge 6.3 X 32mm Ceramic Box CSA/UL/cULus
Allied Electronics:
FUSE CERAMIC 20A 250VAC 3AB 3AG
安富利:
SUT 6.3x32 FUSE 20A T
Chip1Stop:
Fuse Miniature Slow Blow Acting 20A 250V Holder Cartridge 6.3 X 32mm Ceramic Box
TME:
Fuse: fuse; time-lag; ceramic; 20A; 250VAC; 6,3x32mm; SUT
Newark:
# SCHURTER 8020.0605 FUSE, 6.3X32MM, 20A
额定电压AC 250 V
额定电流 20 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
封装 3AB, 3AG, 1/4" x 1-1/4"
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Box
制造应用 安全, Consumer Electronics, 工业, Safety, 消费电子产品, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
