8230-48-RC

保形涂层RF扼流圈 Conformal Coated RF Choke

无屏蔽 绕线 器 2.8 欧姆最大 轴向

得捷:
FIXED IND 15UH 205MA 2.8 OHM TH

艾睿:

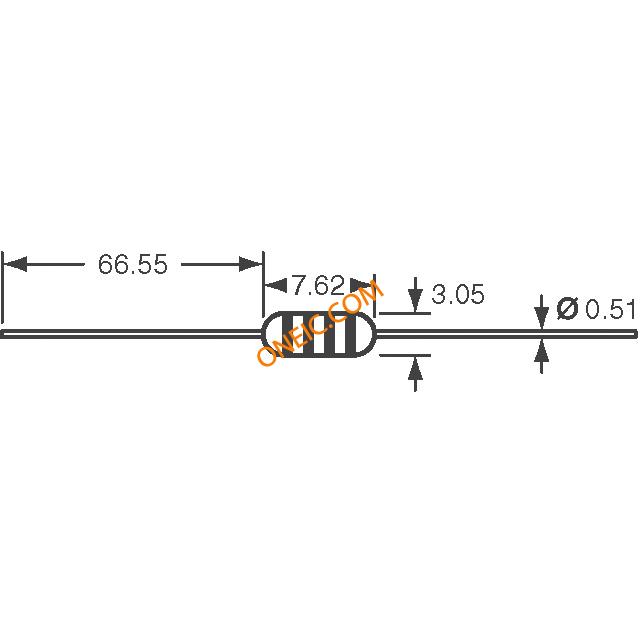

Jump-start your electrical design by including this rf choke 8230-48-RC leaded inductor from Bourns. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 7.62 mm long with a diameter of 3.05 mm. It has an inductance of 15u H. This leaded inductor has a maximum DC current of 205m A with a maximum resistance of 2.8 Ohm. It has a tolerance of 10%. This device utilizes wirewound technology. Its test frequency is 2.5M Hz, while its minimum self-resonant frequency is 35M Hz.

安富利:
Ind RF Choke 15uH 10% 2.5MHz 45Q-Factor Ferrite 205mA AXL Bag

Newark:
# BOURNS JW MILLER  8230-48-RC  Axial Leaded High Frequency Inductor, RF Choke, 8230 Series, 15 µH, 205 mA, 2.8 ohm, ± 10%, 35 MHz

Electro Sonic:
RF Choke Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 205mA 2.8Ohm DCR AXL Bag
