TE Connectivity AMPMODU Mod IV 触点TE Connectivity AMPMODU Mod IV 触点系列。### 2.54mm TE Connectivity AMPMODU Mod IV 系列
AMPMODU Mod IV 触点
TE Connectivity AMPMODU Mod IV 触点系列。
### 2.54mm TE Connectivity AMPMODU Mod IV 系列
得捷:
CONN SOCKET 20-24AWG CRIMP GOLD
立创商城:
86492-6
欧时:

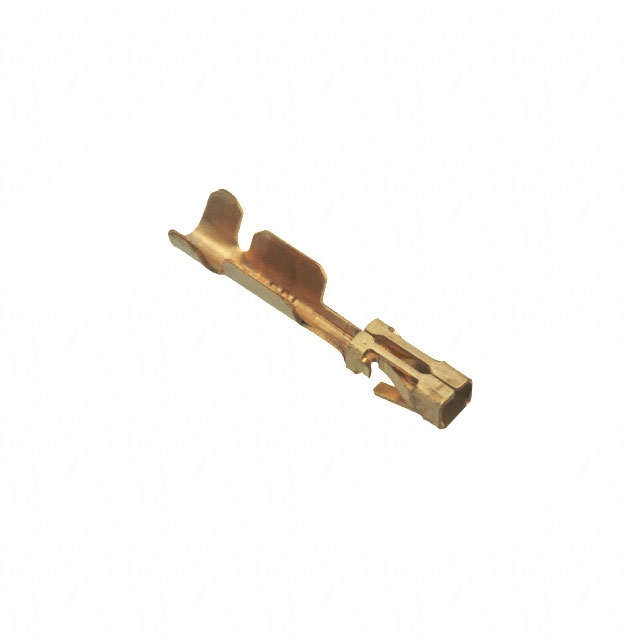

TE Connectivity AMPMODU Mod IV 系列 母 压接端子触点 86492-6, 镀金 铍铜触芯, 12mΩ最大接触电阻
贸泽:
Headers & Wire Housings RECEPTACLE 24-20 AWG
e络盟:
触芯, AMPMODU Mod IV Series, 母, 压接, 20 AWG, 镀金触芯, AMPMODU IV系列插座外壳
艾睿:

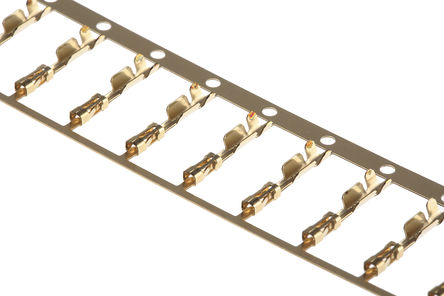

This 86492-6 connector contact from TE Connectivity is will form a perfect mechanical connection, never loose data again. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 20-24 AWG. This connector contact has a minimum operating temperature of -65 °C and a maximum of 105 °C. It uses the crimp termination method. This product is 12.24 mm long, 2.03 mm tall and 2.41 mm deep.
安富利:
Contact SKT Crimp ST Cable Mount Strip
Verical:
Contact SKT Crimp ST Cable Mount 20-24AWG Strip Automotive
Newark:
# AMP - TE CONNECTIVITY 86492-6 Contact, AMPMODU Mod IV Series, Socket, Crimp, 20 AWG, Gold Plated Contacts
MASTER:
CONTACT, MOD IV 1/2, RECEPTACLE, CRIMP SNAP-IN
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
MOD IV RECP PLTD 30 SEL
Electro Sonic:
MOD IV RECP PLTD 30 SEL
触点数 1
极性 Female
线规 20AWG ~ 24AWG
触点电镀 Gold
额定电压AC 250 V
额定电流 3 A
绝缘电阻 5.00 GΩ
触点额定电流 3.00 A
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 12 mΩ
封装 -
高度 2.03 mm
封装 -
触点材质 Beryllium Copper
工作温度 -65℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 测试与测量, 电信, 医用, 工业自动化, 便携式器材, 游戏, 消费电子产品, 仪器仪表
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8538908040
