TE Connectivity PQFP IC SocketsPQFP 0.65mm 微型节距 IC 插座,带公制外壳子装配,用于 28mm 方形 0.65mm PQFP。 此 PQFP IC 插座由高温热塑性制成且板高度高于 9.49mm。 库存号 820-7776 是黑色塑料 0.64mm 盖,用于 100 路 PQFP 0.65mm 微型节距 IC 插座### IC 插座 - QFP 四路平装
PQFP IC Sockets
PQFP 0.65mm 微型节距 IC 插座,带公制外壳子装配,用于 28mm 方形 0.65mm PQFP。 此 PQFP IC 插座由高温热塑性制成且板高度高于 9.49mm。

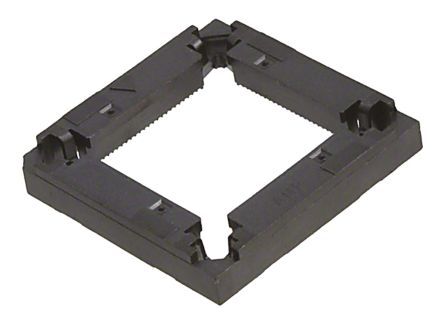

库存号 820-7776 是黑色塑料 0.64mm 盖,用于 100 路 PQFP 0.65mm 微型节距 IC 插座
得捷:
CONN SOCKET COVER FOR 100PQFP
欧时:
TE Connectivity 821939 系列 100 针 0.64mm 节距 面板安装 821939-1, 锡镀镍 电镀触点
贸泽:
IC 与器件插座 ASSY COVER MICRO
艾睿:
If you were planning on completing a total connector assembly then you&s;ll definitely need this cover 821939-1 connector accessory from TE Connectivity. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 105 °C.
安富利:
Connector Accessories Cover 100 POS Polyphenylene Sulfide Black Tube
Verical:
Connector Accessories Cover 100 POS Polyphenylene Sulfide Black Tube
Newark:
# AMP - TE CONNECTIVITY 821939-1 Dust Cap / Cover, Cover, PQFP Socket, PPV Polyphenylene Vinylene Body
MASTER:
ASSY COVER MICRO-PITCH 100 POS
Powell:
PQFP Sockets
Online Components:
ASSY COVER MICRO-PITCH 100 POS
Electro Sonic:
ASSY COVER MICRO-PITCH 100 POS
触点数 100
极性 Male
触点电镀 Tin
易燃性等级 UL 94 V-0
针脚数 100
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 250 VAC
安装方式 Through Hole
引脚数 100
引脚间距 635 µm
宽度 35.6 mm
高度 4.83 mm
引脚间距 635 µm
颜色 Black
触点材质 Phosphor Copper
工作温度 -55℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
