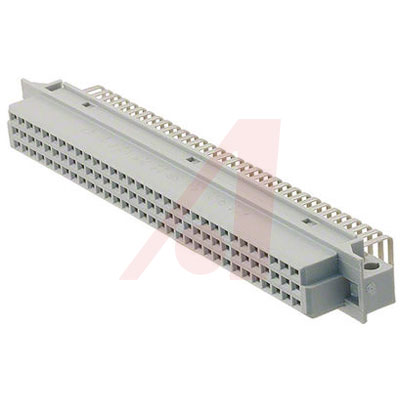

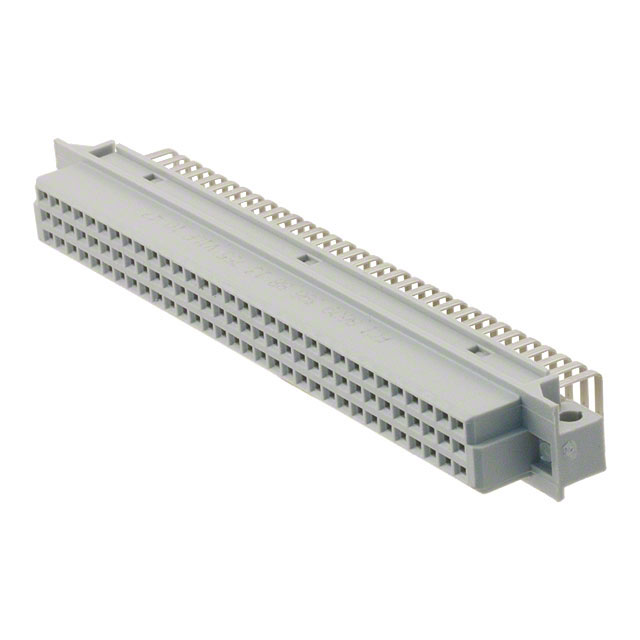

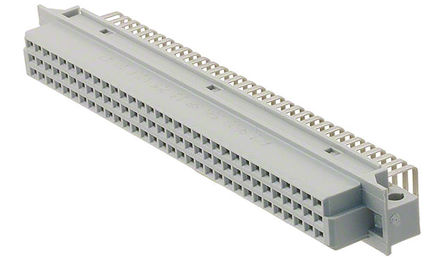

AMPHENOL FCI 86093968813755V1LF 连接器, DIN 41612, 8609系列, 96 触点, 插座, 2.54 mm, 3排, a + b + c
The 8609 series Connector offers a broad and a complete range of interconnection systems conforming to DIN 41612 and IEC 603-2 specifications. The DIN 41612 connector system is the most popular backplane interconnect systems due to the widespread standard adoption, easy availability and durability. The product design for board-to-board and I/O solutions involve two popular mating combination.
- .
- Modular system
- .
- Rear plug up variants in press-fit applications
- .
- Adequate spacing for routing PCB traces
- .
- Improve creepage distance, allow custom loading
- .
- Critical grounding option
- .
- Enhances the connector suitability and flexibility
- .
- Extended mating applications via shrouds on the rear side of the PCB
触点数 96
极性 Female
触点电镀 Gold over Nickel, Gold
额定电流 1.5 A
绝缘电阻 1000000 MΩ
排数 3
易燃性等级 UL 94 V-0
针脚数 96
拔插次数 400
额定电流Max 2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 1000 VAC
接触电阻Max 20 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 94 mm
宽度 17.58 mm
高度 10.6 mm
引脚间距 2.54 mm
外壳颜色 Gray
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 Logistics, Consumer Electronics, Industrial, Medical, Automation & Process Control, Lighting, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
