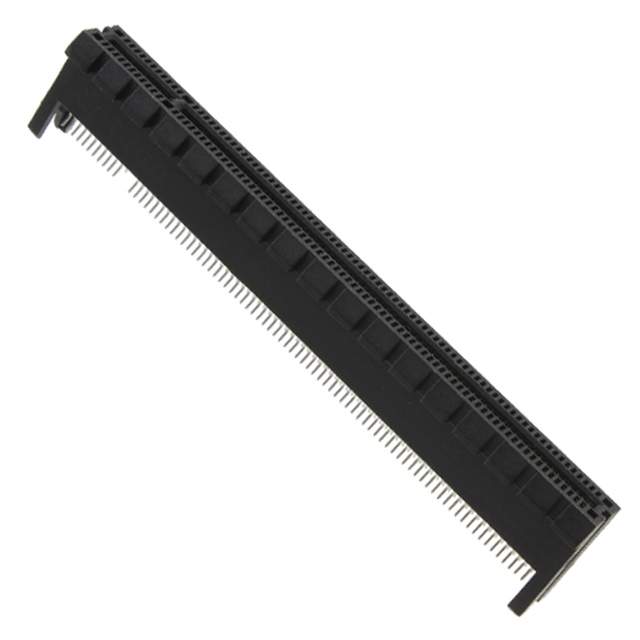

82 双位 0.039 英寸间距 跨板式安装 卡沿式 插座 表面贴装
164 位置 母头 PCI Express™ 镀金 0.039"(1.00mm) 黑色
立创商城:
1mm P数:164
得捷:
CONN PCI EXP FEMALE 164POS 0.039
艾睿:
Reduce the cost of electrical connections between components with this pci express card edge 8-1734857-5 smart card connector from TE Connectivity. This SKT connector&s;s 164 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1 mm. It has a maximum voltage rating of 50 VAC. This is a 2-row connector. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 1.1 A/contact. The component will be shipped in tray format. It uses the solder termination method. This card edge connector has an operating temperature of -40 to 85 °C. 8-1734857-5 is housed in black nylon 6t.
安富利:
Conn PCI Express Card SKT 164 POS 1mm Solder ST Edge Mount Tray
触点数 164
极性 Female
触点电镀 Tin, Tin over Nickel, Gold, Gold over Nickel
排数 2
针脚数 164
拔插次数 50
额定电流Max 1.1A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 50 VAC
安装方式 Surface Mount
封装 -
高度 8.8 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
