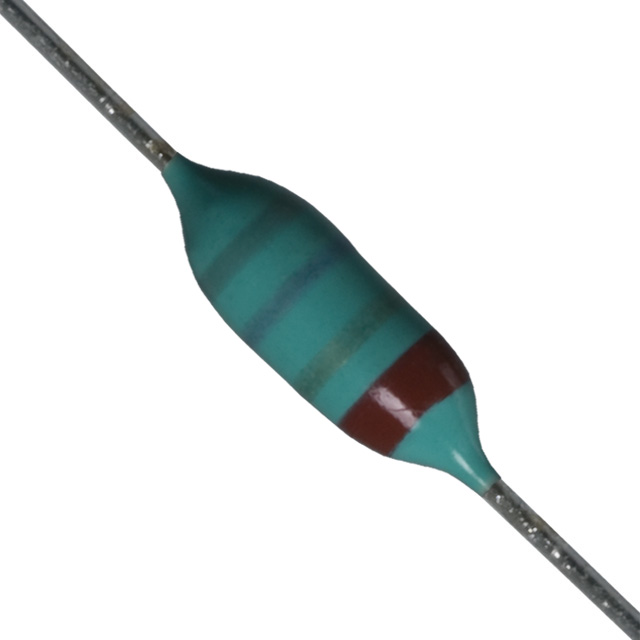

8230-30-RC

保形涂层RF扼流圈 Conformal Coated RF Choke

无屏蔽 绕线 器 500 毫欧最大 轴向

得捷:
FIXED IND 2.7UH 495MA 500MOHM TH

艾睿:
If you need a convenient and easily removable inductor for your electrical design then consider this rf choke 8230-30-RC leaded inductor from Bourns. This leaded inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 100M Hz. This product is 7.62 mm long with a diameter of 3.05 mm. It has an inductance of 2.7u H. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 495m A with a maximum resistance of 500m Ohm. It has a tolerance of 10%.

安富利:
Ind RF Choke 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA AXL Bag

TME:
Inductor: axial; THT; 2.7uH; 0.495A; 500mΩ; Ø3.05x7.62mm; ±10%

Verical:
RF Choke Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 0.495A 0.5Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  8230-30-RC  Axial Leaded High Frequency Inductor, RF Choke, 8230 Series, 2.7 µH, 495 mA, 0.5 ohm, ± 10%

MASTER:
RF Choke Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA 500mOhm DCR AXL Bag

Online Components:
RF Choke Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA 500mOhm DCR AXL Bag

Electro Sonic:
RF Choke Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA 500mOhm DCR AXL Bag
