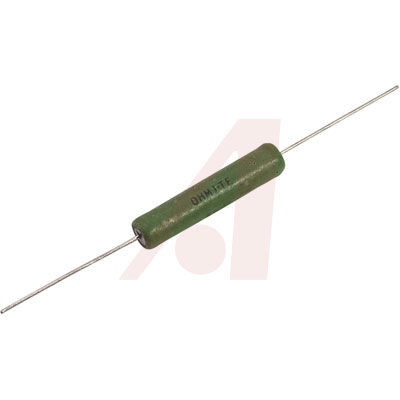

83FR15图片1
83FR15图片2
83FR15图片3
83FR15图片4
83FR15图片5
83FR15图片6
83FR15概述

线绕电阻器 - 透孔 3watt .15ohm 1% Axial

High quality conformal silicone-ceramic coated resistors for applications requiring high precision, power and stability. These resistors have a low temperature coefficient and maintain a high degree of stability under demanding conditions. They feature all-welded construction and have the ability to maintain accurate resistance values due to being stabilized. Ceramic core with solder coated axial leads.
.
*

Features:

**

* High Stability ±1% Tolerance**

**

* Designed for Precision Power Applications**

**

* All Welded Construction

83FR15中文资料参数规格
技术参数

线规 20.0 AWG

额定电压DC 200 V

容差 ±1 %

额定功率 3 W

产品系列 80

电阻 0.15 Ω

阻值偏差 ±1 %

工作温度Max 275 ℃

工作温度Min 25 ℃

额定电压 200 VDC

封装参数

安装方式 Axial

封装 Silicone-Ceramic

外形尺寸

长度 15.1 mm

宽度 15.1 mm

直径 5.54 mm

脚长度 1.5 in

封装 Silicone-Ceramic

物理参数

材质 Ceramic

工作温度 25℃ ~ 275℃

温度系数 ±90 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 100

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

83FR15引脚图与封装图
83FR15引脚图
83FR15封装图
83FR15封装焊盘图
在线购买83FR15
型号: 83FR15
制造商: Ohmite
描述:线绕电阻器 - 透孔 3watt .15ohm 1% Axial
