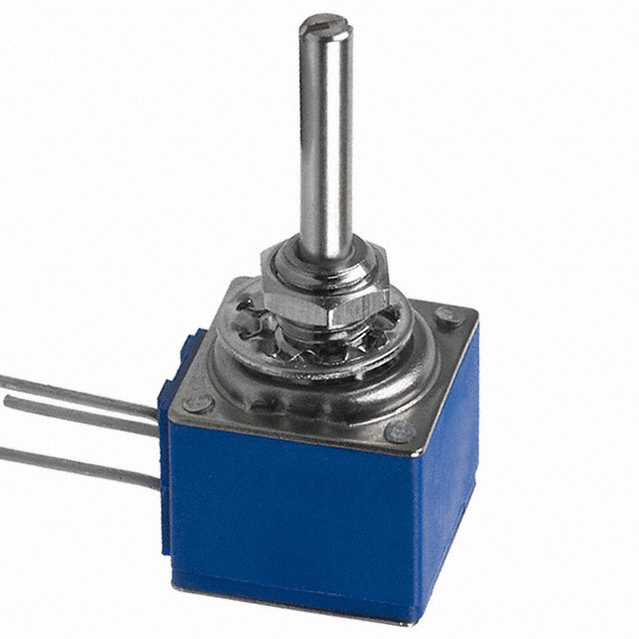

Res Cermet POT 5KΩ 10% 2W 1Elec/1MechTurn 3.18mm 38.11 X 15.88 X 17.52mm Pin Panel Mount/Through Hole
Res Cermet POT 5K Ohm 10% 2W 1Elec/1MechTurn 3.18mm 38.11 X 15.88 X 17.52mm Pin Panel Mount/Through Hole
得捷:
POT 5K OHM 2W CERMET LINEAR
贸泽:
Potentiometers 5/8" 5K 10% Square Single Turn
Verical:
Res Cermet POT 5K Ohm 10% 2W 1Elec/1MechTurn 3.18mm 38.11 X 15.88 X 17.52mm Pin Panel Mount/Through Hole
Online Components:
Res Cermet POT 5K Ohm 10% 2W 1Elec/1MechTurn 3.18mm 38.11 X 15.88 X 17.52mm Pin Panel Mount/Through Hole
Electro Sonic:
Res Cermet POT 5K Ohm 10% 2W 1Elec/1MechTurn 3.18mm 38.11 X 15.88 X 17.52mm Pin Panel Mount/Through Hole
额定电压DC 500 V
容差 ±10 %
额定功率 2 W
电阻 5 kΩ
阻值偏差 ±10 %
安装方式 Through Hole
封装 Square - 0.625" L x 0.625" W x 0.625" H 15.88mm x 15.88mm x 15.88mm
长度 15.9 mm
宽度 15.9 mm
高度 17.52 mm
封装 Square - 0.625" L x 0.625" W x 0.625" H 15.88mm x 15.88mm x 15.88mm
工作温度 -40℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
