8056

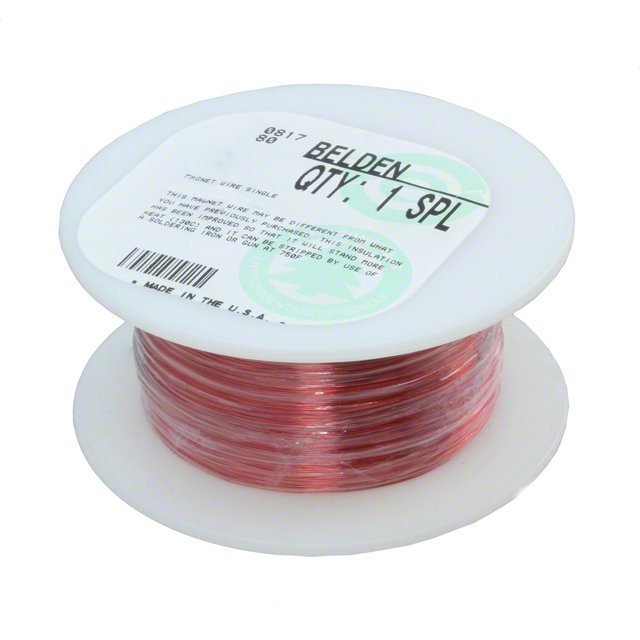

8056图片1
8056图片2
8056图片3
8056概述

BELDEN  8056  磁导线 单芯

Beldsol magnet wire is a dual insulated magnet wire that combines the excellent dielectric characteristics of polyurethane and the known toughness and solvent resistance of a nylon overcoat. This wire is rated by IEEE tests for 270 degrees F. usage and will solder without insulation removal at 750 degrees F.


得捷:
MW-28C SL 32AWG


e络盟:
磁导线 单芯


Allied Electronics:
WIRE, MAGNET, SOLDERABLE, 32AWG, POLYURETHANE/NYLON COATED CLEAR TRANSPARENT


Chip1Stop:
Hook-up Wire 1Conductors 32AWG Bare Copper 0.09A


Verical:
Hook-up Wire 1Conductors 32AWG Bare Copper 0.09A


Newark:
# BELDEN  8056  Wire, Magnet, Beldsol, Unjacketed, Unjacketed, 32 AWG, Solid, 2515 ft


MASTER:
Hook-up Wire 1Conductors 32AWG Bare Copper 0.09A


Online Components:
Hook-up Wire 1Conductors 32AWG Bare Copper 0.09A


8056中文资料参数规格
技术参数

线规 32 AWG

额定电流Max 0.09 A

外形尺寸

长度 767 m

物理参数

绝缘材质 Nylon

导体材质 Copper

外壳材质 Polyurethane

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC版本 2015/12/17

数据手册

在线购买8056
型号: 8056
制造商: Belden Wire & Cable 百通线材
描述:BELDEN  8056  磁导线 单芯
