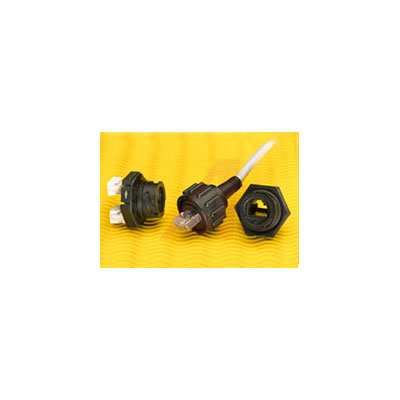

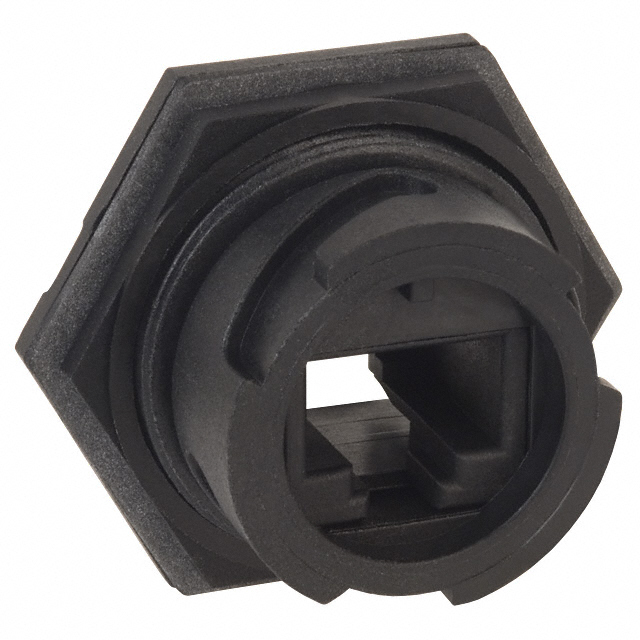

RJ - 45以太网/ IP *包覆成型线组, IDT和印刷电路板插孔 RJ-45 EtherNet/IP* Overmolded Cordsets, IDT and PCB Receptacles
Brad® Industrial Ethernet Solutions
Extract real-time data from the manufacturing floor to front-office computing devices seamlessly with Brad ® Industrial Ethernet Solutions. Production downtime causes major revenue loss and is a source of concern in factory automation plants. The majority of production downtimes occur when multiple non-integrated communication devices do not transmit signals over the same protocol. Brad® Industrial Ethernet Solutions solve this problem, enabling multiple devices to communicate over Ethernet technology.
触点数 8
极性 Female
触点电镀 Gold
额定电压DC 125 V
额定电压AC 125 V
额定电流 1.5 A
绝缘电阻 500 MΩ
无卤素状态 Not Low Halogen
方向 Straight
电路数 8
易燃性等级 UL 94 V-0
针脚数 8
接触电阻 20.0 mΩ
拔插次数 500
屏蔽 Yes
额定电压 125 VAC
安装方式 Through Hole
长度 18.8 mm
宽度 38.1 mm
高度 33 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Polyester
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536698000
