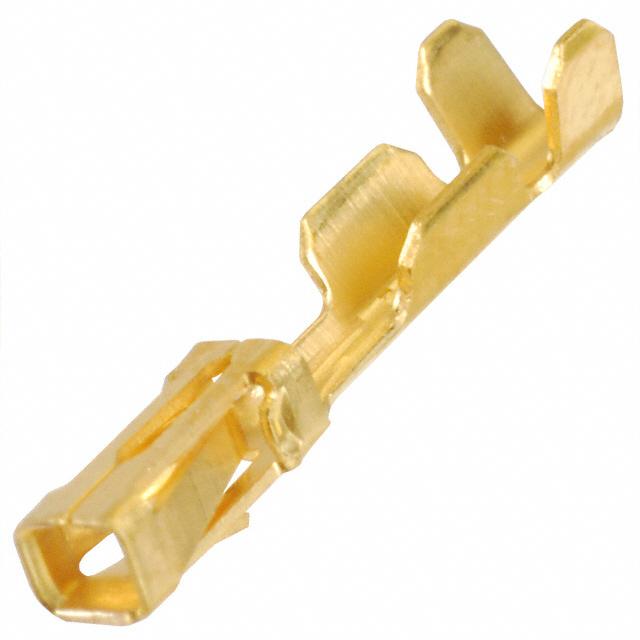

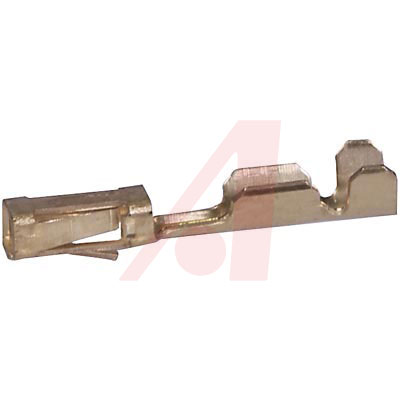

AMPMODU 30 u"" 金 26-22 AWG 压接 插座 接触端子
\- 插口 触点 镀金 22-26 AWG 压接
得捷:
CONN SOCKET 22-26AWG CRIMP GOLD
e络盟:
触芯, AMPMODU Mod IV系列, 母, 压接, 22 AWG, 镀金触芯, AMPMODU Mod IV Series Connectors
艾睿:
Contact SKT Crimp ST Cable Mount 22-26AWG Loose
Allied Electronics:
AMPMODU Mod IV PCB Connector Contact, Female, Crimp, Gold Plating 26 to 22 AWG
Jameco:
Contact Socket Crimp Straight Cable Mount Loose Piece
安富利:
Contact SKT Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact SKT Crimp ST Cable Mount 22-26AWG Loose
Verical:
Contact SKT Crimp ST Cable Mount 22-26AWG Loose
Newark:
Contact, AMPMODU Mod IV Series, Socket, Crimp, 22 AWG, Gold Plated Contacts
MASTER:
CONTACT,FEMALE,MOD IV, CRIMP SNAP-IN LOOSE PIECE
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
MOD IV RECP LP
ICbanQ:
Rectangular Connectors STANDARD PRESSURE 26-22 AWG gold
Electro Sonic:
MOD IV RECP LP
Win Source:
CONN SOCKET 22-26AWG CRIMP GOLD / Socket Contact Gold 22-26 AWG Crimp
触点数 1
极性 Female
线规 22AWG ~ 26AWG
触点电镀 Gold
额定电压AC 250 V
额定电流 3 A
绝缘电阻 5000 MΩ
接触电阻 12 mΩ
触点额定电流 3.00 A
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
额定电压 250 V
接触电阻Max 12 mΩ
长度 11.68 mm
触点材质 Beryllium Copper
工作温度 -65℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 测试与测量, 车用, 工业, 医用, 工业自动化, 电信, 游戏, 仪器仪表, 消费电子产品, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8538904000
